DTC P1509: Idle Air Control Counts Too High: Notes

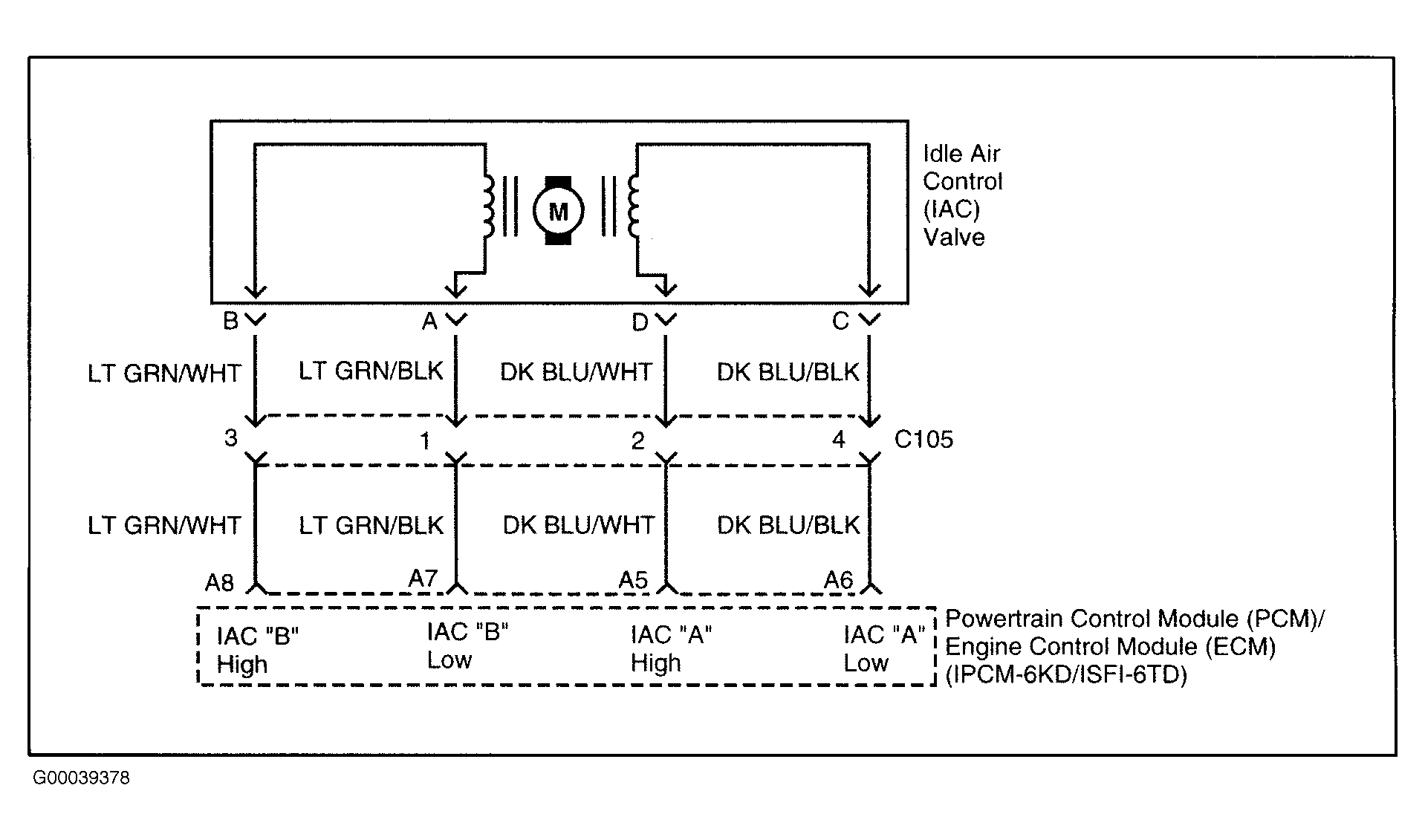

Fig 1: Idle Speed RPM Circuit Diagram

G00039378

Courtesy of DAEWOO
