DTC P0404: Exhaust Gas RECIRCULATION - Open Valve Position Error: Notes

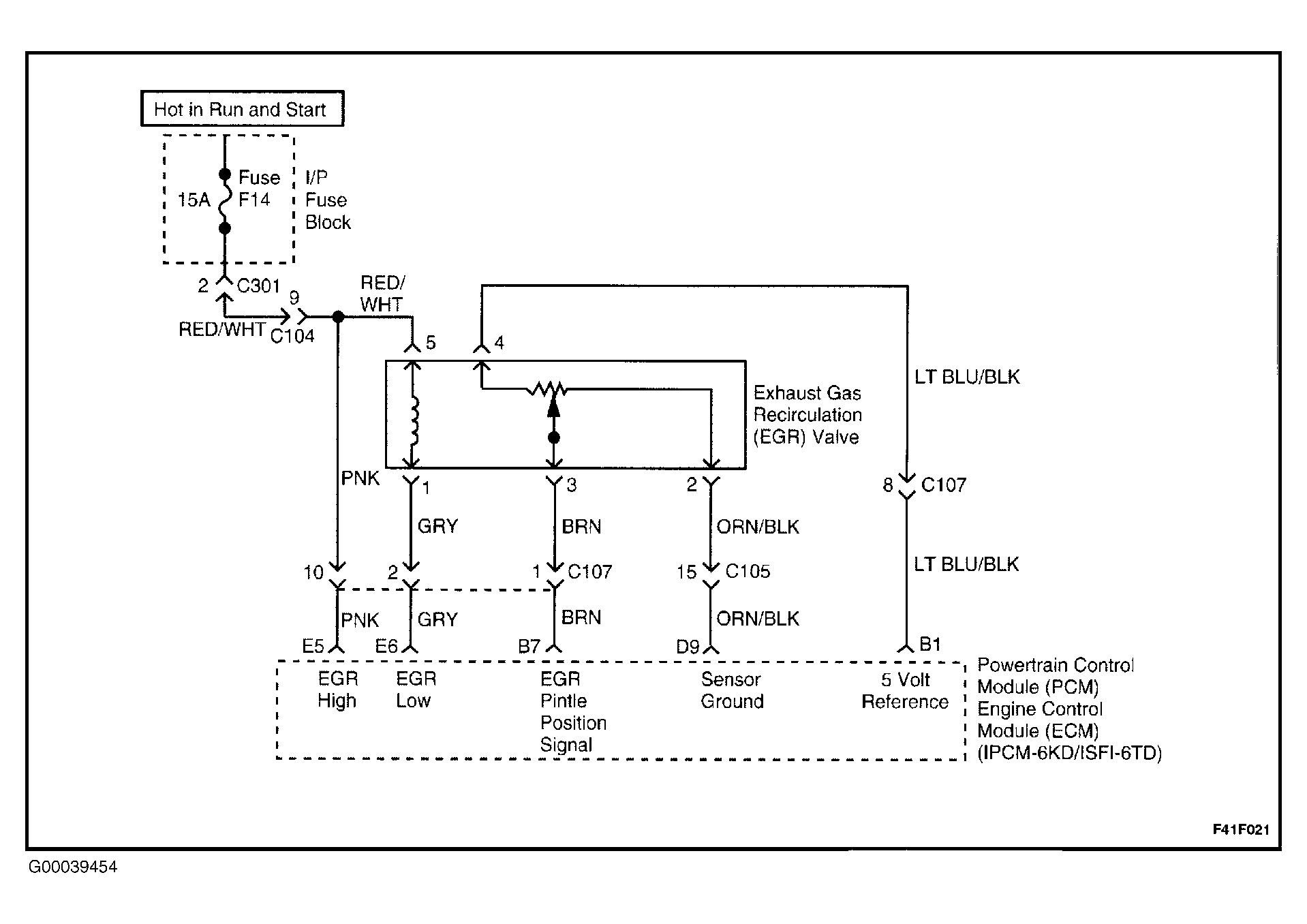

Fig 1: Exhaust Gas Recirculation Circuit Diagram

G00039454

Courtesy of DAEWOO
