Removal And Installation: AWD

REMOVAL

1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
   multimedia:A supplement to the article is available.
2. Remove and DISCARD  the steering shaft to steering gear pinch fastener.

   Do not start to remove (or break free) the pinch fastener with an impact wrench/gun.

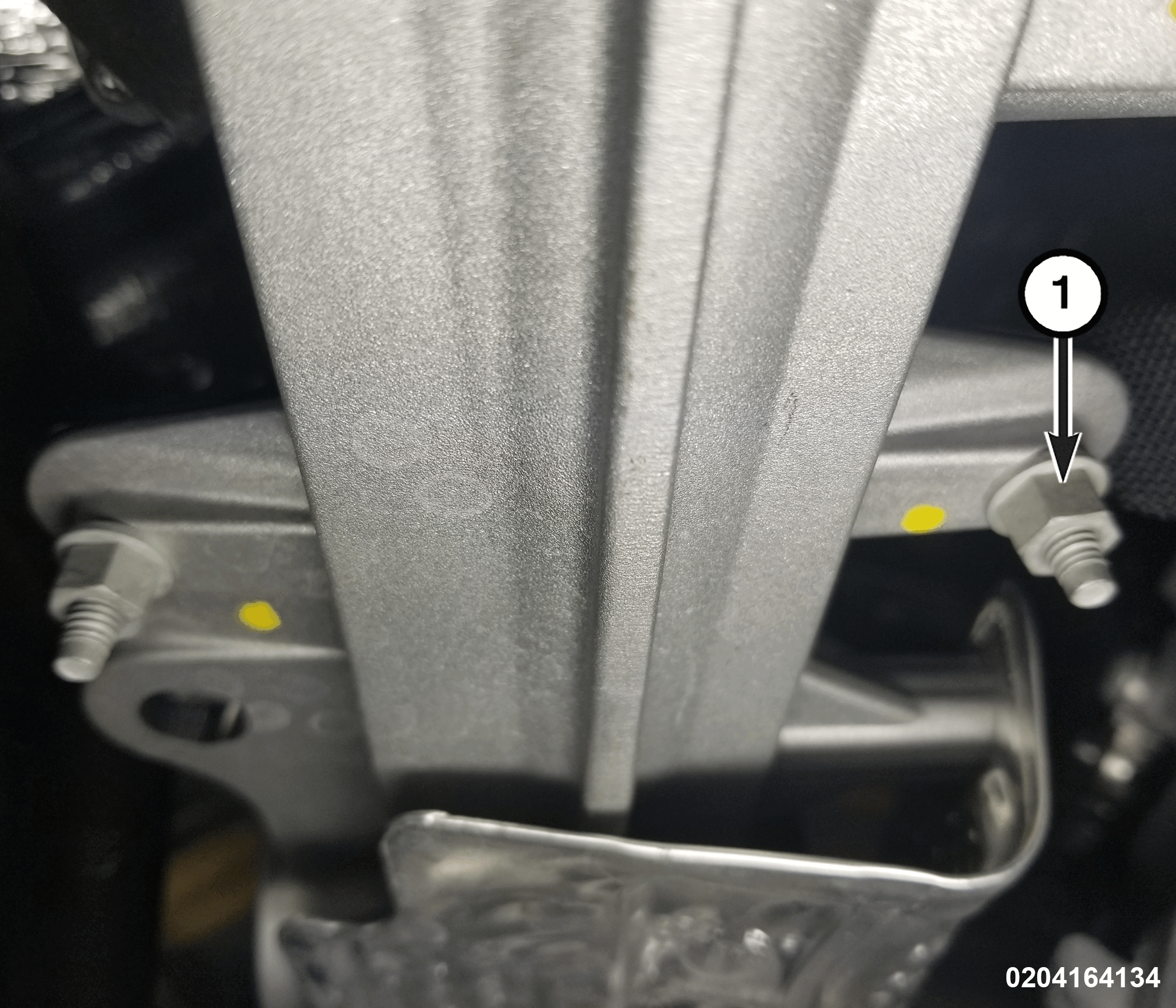

   Courtesy of CHRYSLER GROUP, LLC

   1 - Steering Gear Pinch Fastener

   2 - Dash Panel Fastener

3. Remove the dash seal to dash panel fasteners.
4. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
5. Remove the front tire and wheel assemblies. Refer to TIRES AND WHEELS, REMOVAL AND INSTALLATION .
6. Remove the belly pan. Refer to BELLY PAN, FRONT, REMOVAL AND INSTALLATION .
7. Remove the drive shaft. Refer to DRIVESHAFT, REMOVAL AND INSTALLATION .
8. Remove the exhaust hanger.

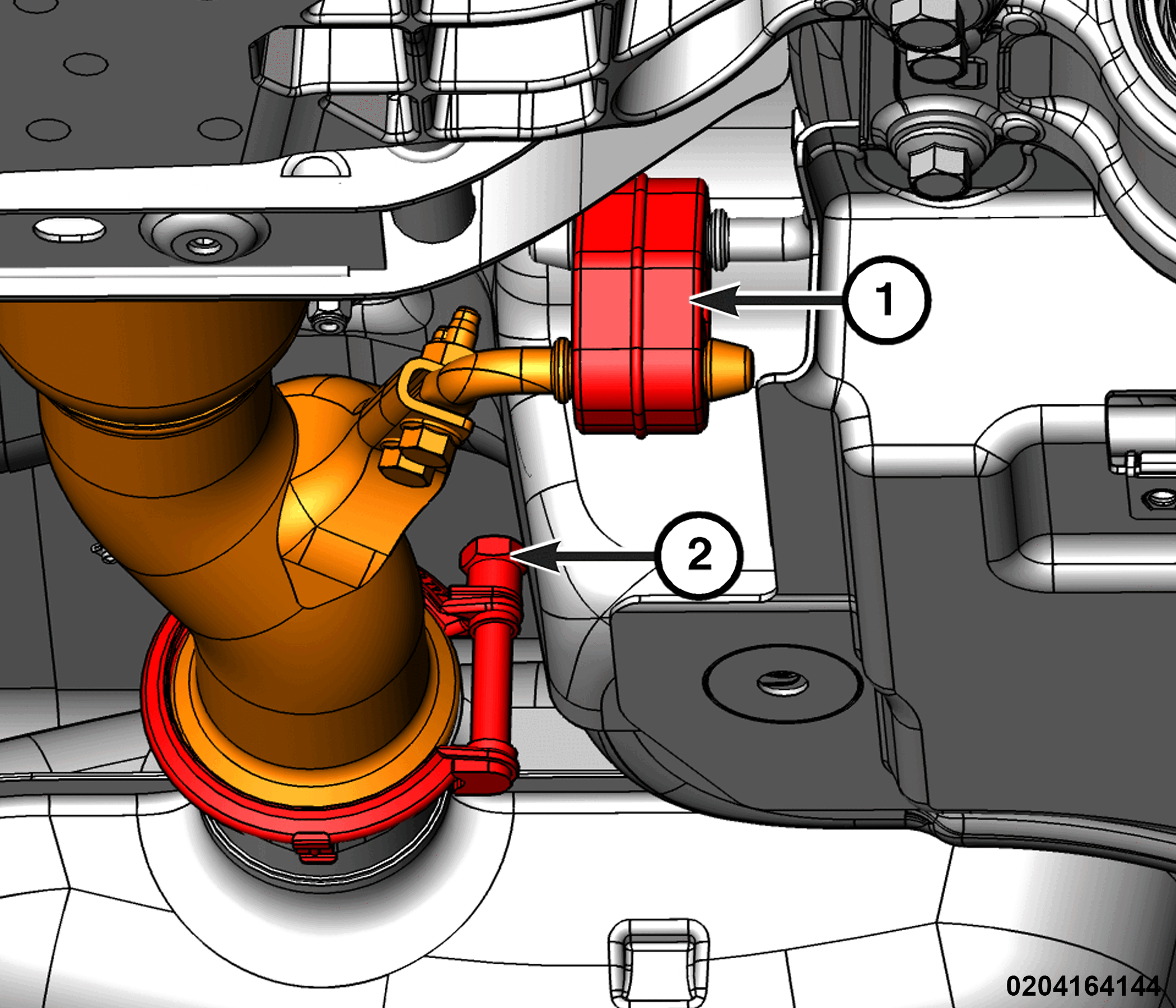

   Courtesy of CHRYSLER GROUP, LLC

   1 - Exhaust Hanger

   2 - Exhaust Pipe Clamp

9. Remove the exhaust pipe clamp and disengage the exhaust pipe.
10. Remove the tie rods from the steering knuckles. Refer to TIE ROD, STEERING, REMOVAL AND INSTALLATION .
11. Remove the steering gear crossmember. Refer to CROSSMEMBER, STEERING GEAR, REMOVAL AND INSTALLATION .
    NOTE:

    DO NOT disconnect the torque sensor (grey) harness connector and make sure it is connected properly.

12. Remove the heat shield to steering gear mounting fasteners and remove the heat shields.

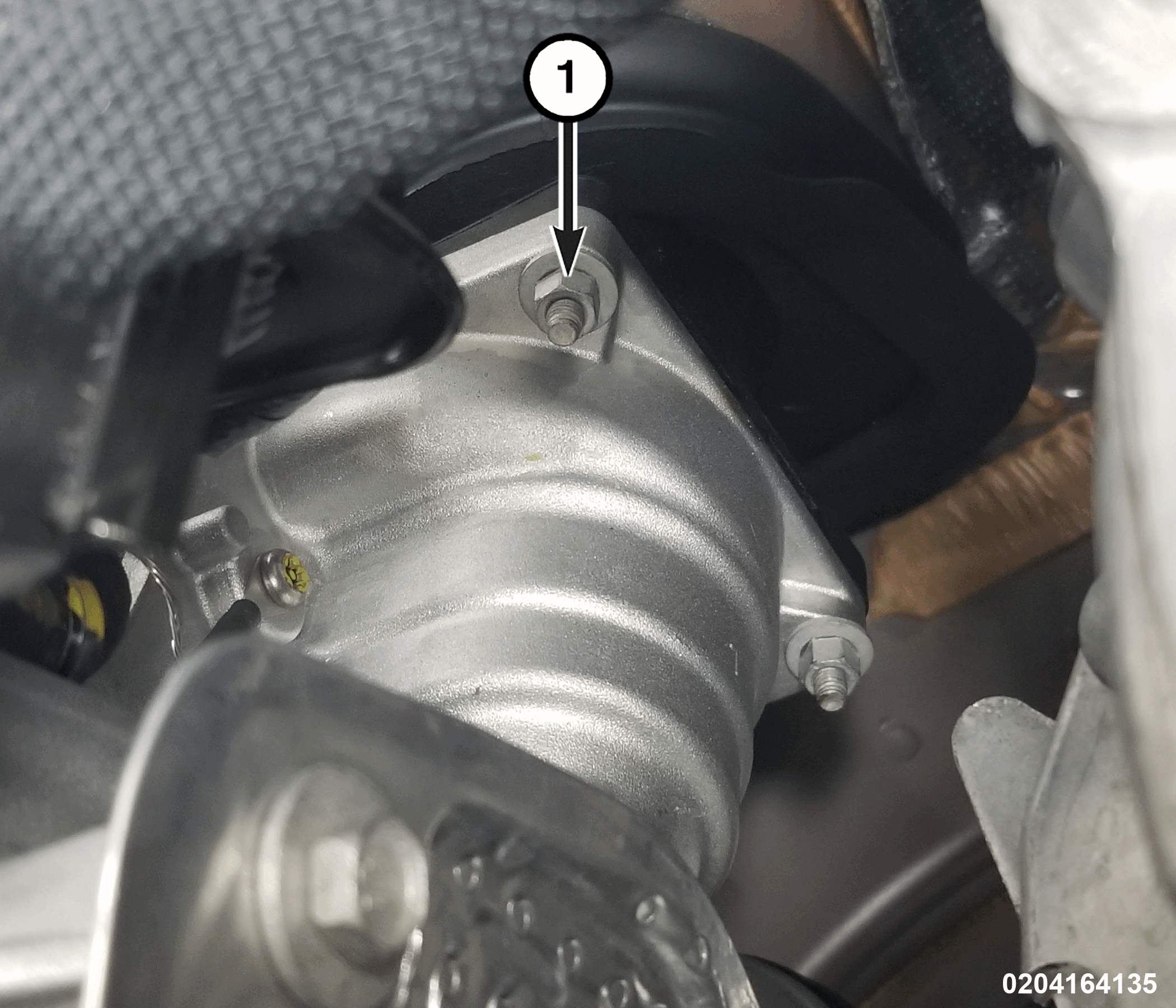

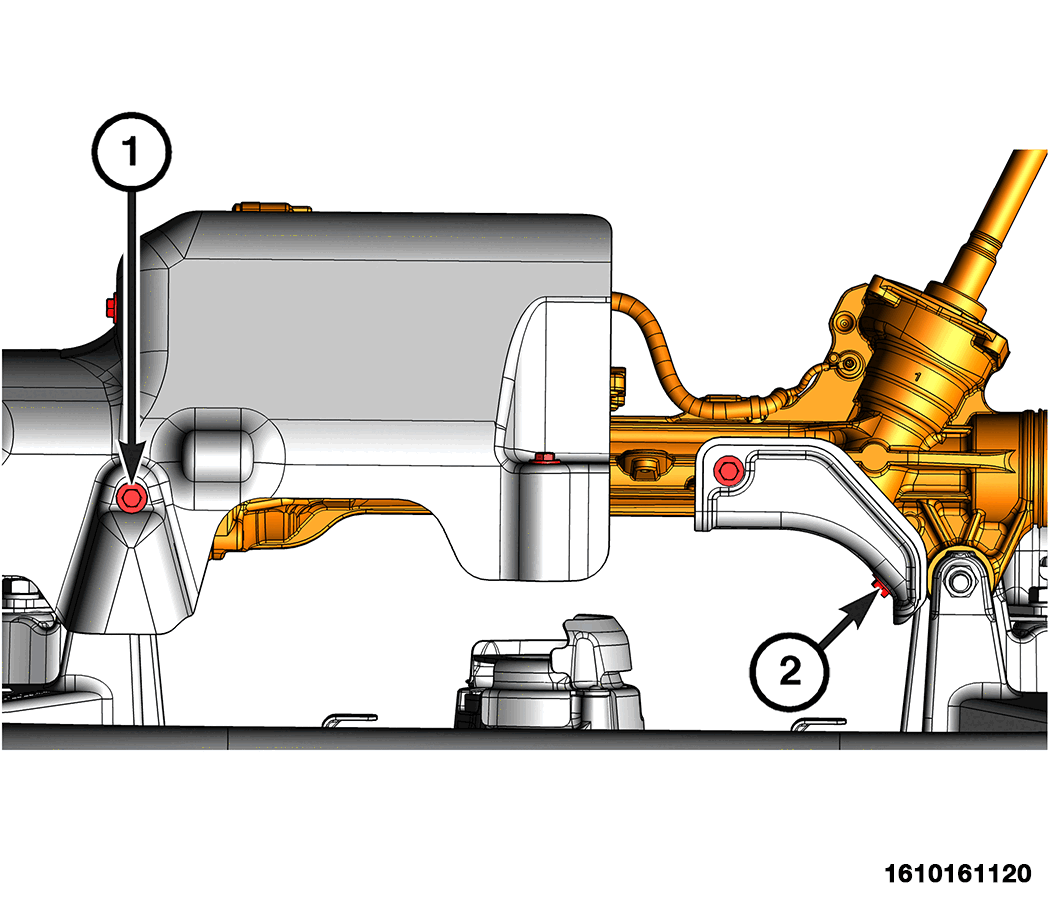

    Courtesy of CHRYSLER GROUP, LLC

    1 - Steering Gear Mounting Fastener

    2 - Steering Gear Mounting Fastener

13. Support the transmission with a suitable stand.

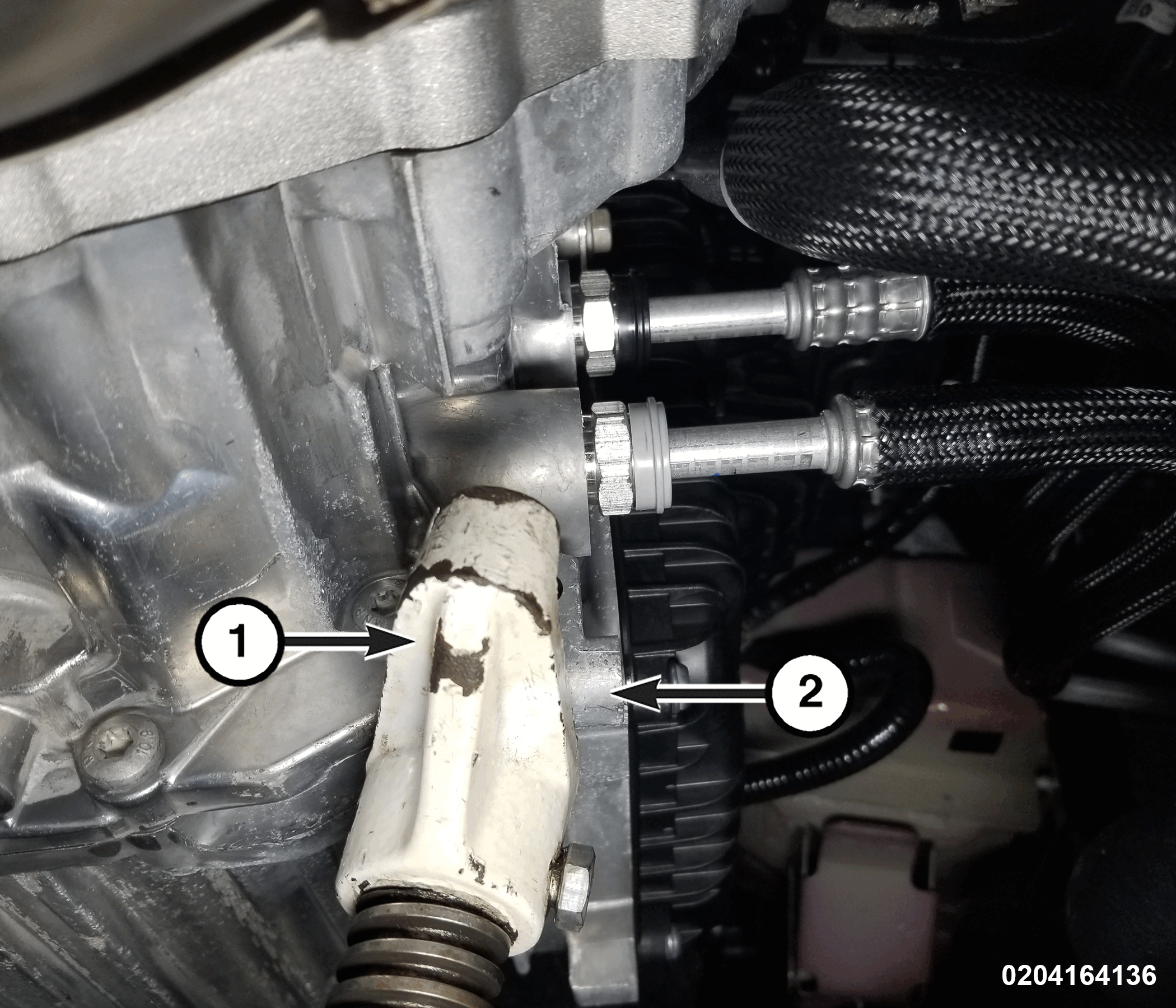

    Courtesy of CHRYSLER GROUP, LLC

    1 - Suitable Stand

    2 - Transmission

14. Support the steering gear with a suitable strap and remove the steering gear bolts.

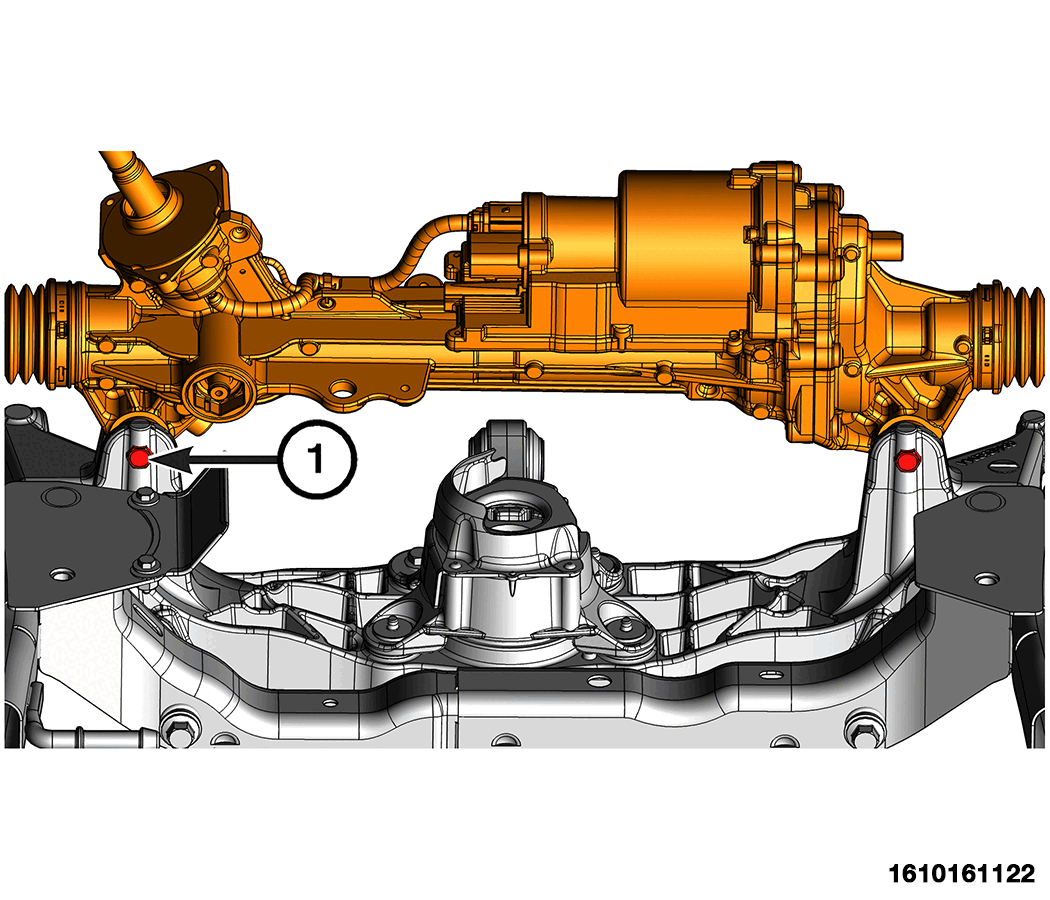

    Courtesy of CHRYSLER GROUP, LLC

    1 - Steering Gear Bolt

15. Remove the steering gear crossmember. Refer to CROSSMEMBER, STEERING GEAR, REMOVAL AND INSTALLATION .
16. Disconnect the Electric Power Steering (EPS) wire harness connectors.

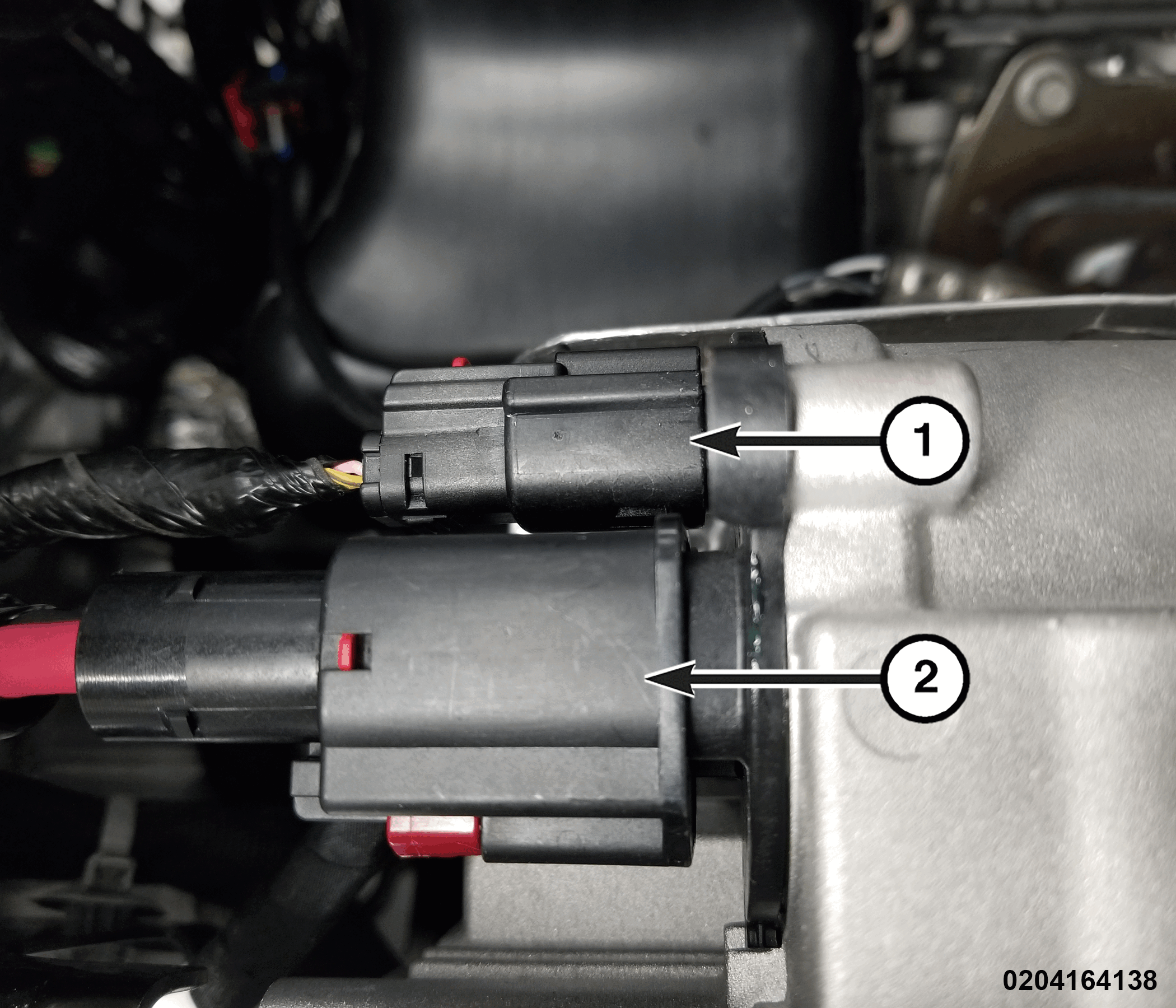

    Courtesy of CHRYSLER GROUP, LLC

    1 - Wire Harness Connector

    2 - Wire Harness Connector

17. Remove both stabilizer bar links and use a suitable strap to tie down the stabilizer bar to the control arm. Refer to LINK, STABILIZER BAR, REMOVAL AND INSTALLATION .
18. Remove the bracket fasteners and remove the bracket.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Bracket Fastener

19. Remove the dash seal to steering gear fasteners and remove the dash seal.

    Courtesy of CHRYSLER GROUP, LLC

    1 - Steering Gear Fastener

20. Remove the steering gear.
21. Remove the heat shield.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• The heat shield can only be installed to the engine compartment while the steering gear is removed.
• A suitable strap may aid in holding the steering gear in position.
• Install the dash seal to steering gear fasteners and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
• Apply medium strength threadlocker to the studs before installing the dash seal to steering gear fasteners.
• Install the steering gear bolts and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
• Position the heat shields to the steering gear then install the heat shield to steering gear fasteners and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
• Install the exhaust pipe clamp then tighten the cross-under pipe to exhaust pipe clamp to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
• Install a NEW  steering shaft to steering gear pinch fastener and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
• Install the dash seal to dash panel fasteners and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
• Apply medium strength threadlocker to the dash seal to dash panel fasteners before installation.
• Perform the Electric Power Steering (EPS) verification test. Refer to EPS VERIFICATION TEST .
• Perform the wheel alignment standard procedure. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
