Upper Steering Column Shroud

REMOVAL

1. Remove the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
2. Remove the upper steering column shroud by pushing inward along the edges of the shroud to release the retainers.

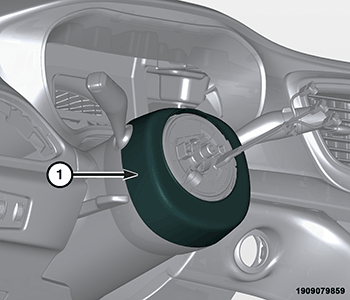

   Courtesy of CHRYSLER GROUP, LLC

   1 - Upper Steering Column Shroud

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• Snap the upper shroud into lower shroud by pushing the two halves together along the seam.
