Lower Steering Column Shroud

REMOVAL

1. Remove the steering column control module. Refer to MODULE, STEERING COLUMN CONTROL (SCCM), REMOVAL AND INSTALLATION .

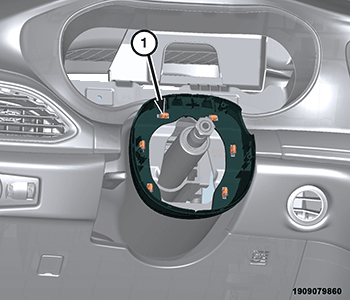

2. Disengage the retaining clips that secure the lower steering column shroud to the gap hider.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Retaining Clips

3. Remove the lower steering column shroud from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
