Transmission Control Module (TCM): Notes

REMOVAL

1. Disconnect and isolate negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable(s).
2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
3. Remove the bolts that secure the transmission mount to the transmission and lower to gain access to the TCM. Refer to MOUNT, TRANSMISSION, REMOVAL AND INSTALLATION .
4. Disconnect the TCM wire harness connector.

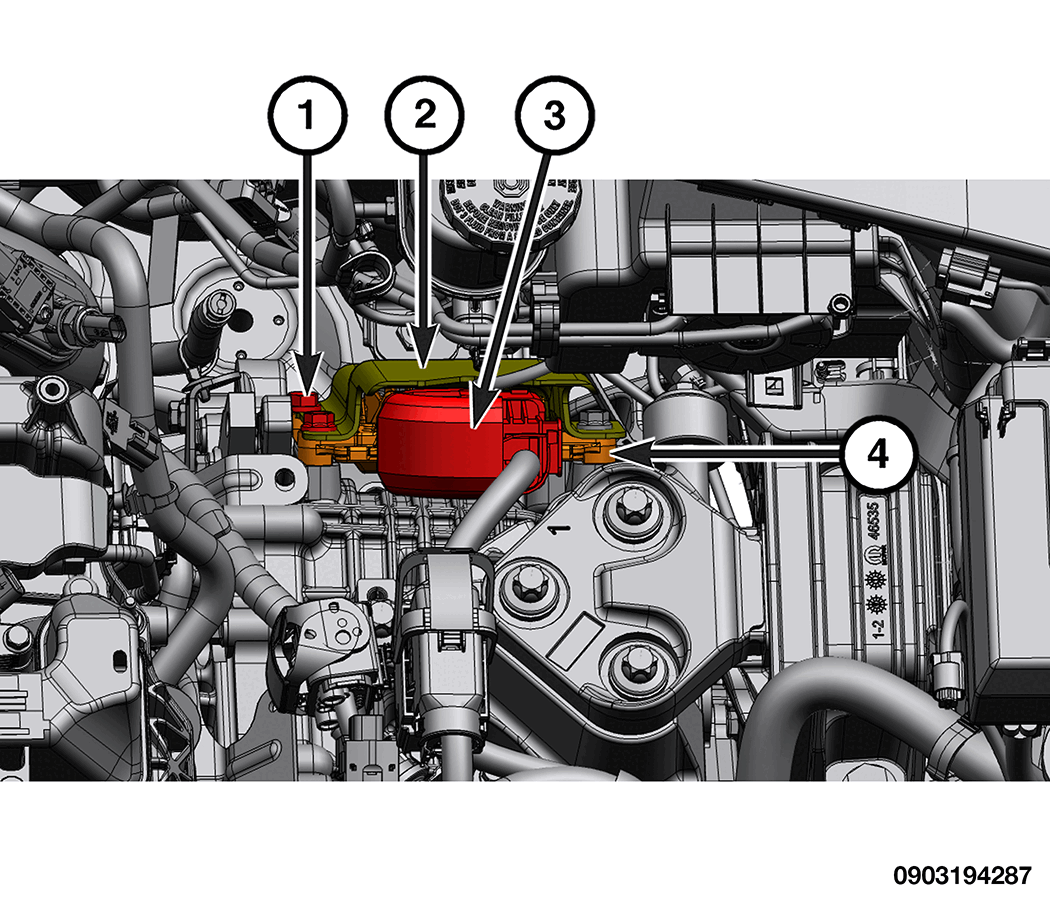

   Courtesy of CHRYSLER GROUP, LLC

   1 - TCM Mounting Bolts

   2 - TCM Cover

   3 - TCM Wire Harness Connector

   4 - TCM

5. Remove the TCM mounting bolts.
6. Remove the TCM cover.
7. Remove the TCM from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

• When replacing a Transmission Control Module (TCM), the TCM must be programmed. Failure to properly program the TCM may result in the illumination of the Malfunction Indicator Lamp (MIL) and setting DTC(s).
• If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
• The Valve Body Solenoid Learn procedure must be performed when the TCM and/or valve body is replaced. Failure to perform the Valve Body Solenoid Learn procedure will result in reduced shift quality.
