Removal And Installation

WARNING: This page is about a different car, the 2025 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

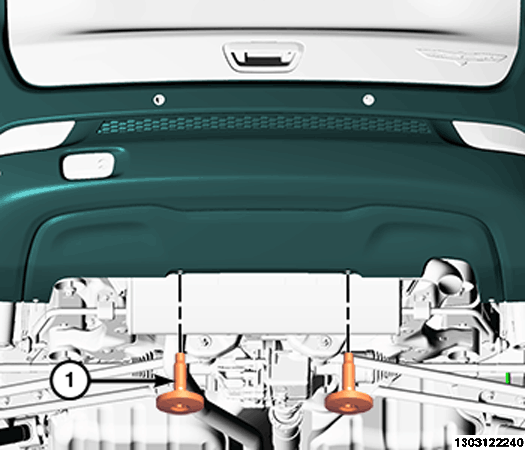

Remove the lower screws (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (2) and remove the heat shield (1).

Courtesy of CHRYSLER GROUP, LLC
Disconnect the body wiring harness connectors (2) from the Hands Free Entry Power Liftgate (HFEPLG) module.

Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (1) securing the HFEPLG module with sensor assembly to the fascia.
Remove the HFEPLG module (3) with sensor from the fascia.

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

Position the Hands Free Entry Power Liftgate (HFEPLG) module (3) to the fascia for installation.
Install the fasteners (1) to secure the HFEPLG module with sensor to the fascia and seat fully.
Connect the wiring harness connectors (2) to the HFEPLG module.
Install the heat shield (1).

Courtesy of CHRYSLER GROUP, LLC
Install the fasteners (2) and tighten securely.
Install the lower screws (1).

Courtesy of CHRYSLER GROUP, LLC
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
