MOPAR Connect TELEMATIC Box - RHD: Installation
WARNING: This page is about a different car, the 2025 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
- Apply a strip of biadhesive Velcro (1) to the back of the T-box module.
- Apply the Coroplast covering tape (1) to the parts of the T-box module in contact with the vehicle to prevent vibration noise when it is mounted on the vehicle.
- Inspect the T-box wiring for Coroplast tape (2) covering up to the connector. Add Coroplast tape as needed.

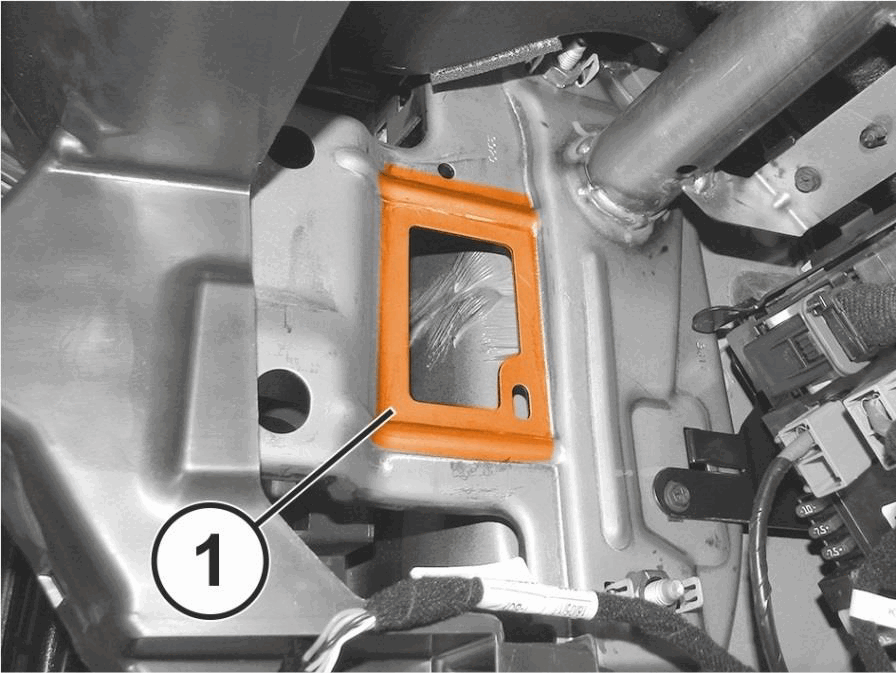

- Clean the contact surface (1) with isopropyl alcohol or heptane where the module will be fitted.

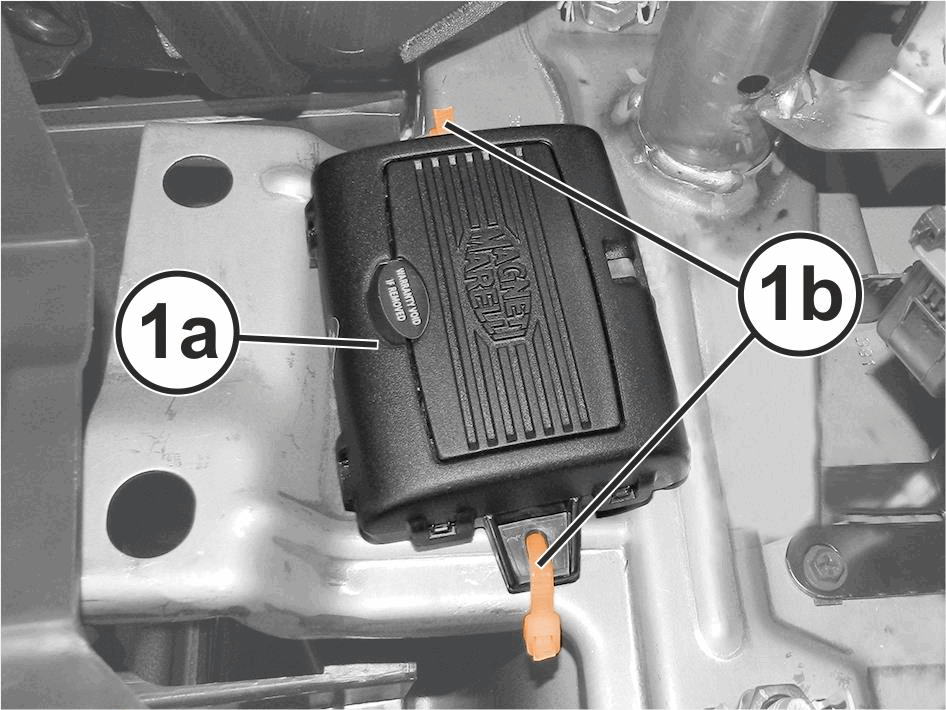

- Using cable ties (1b), secure the T-box (1a) in position on the internal dashboard bracket with the wiring socket facing the bulkhead.

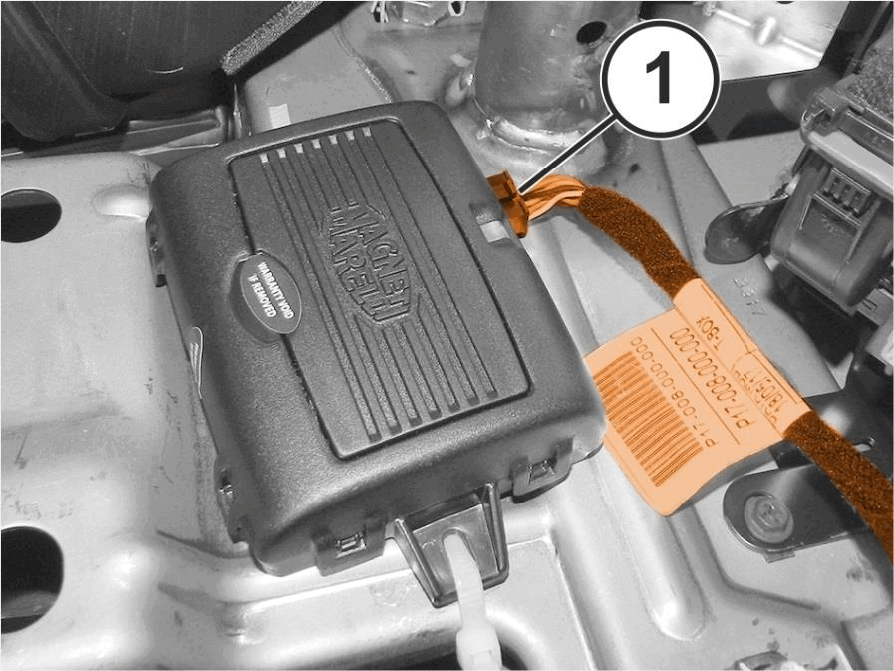

- Connect the T-box wiring harness connector (1) to the T-box.
- Install the glove compartment. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- On completion of installation of the T-box module, connect the diagnosis instrument to the car's OBD socket, locate the BCM module and check for errors.
