Sensor, Active Damping: Installation: Front

NOTE:

Installation process is the same for both sides of the vehicle.

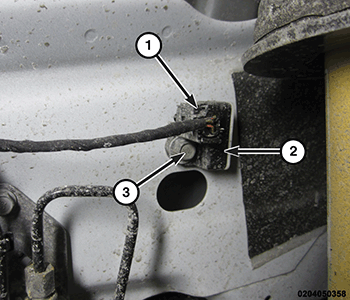

GC0170152Courtesy of CHRYSLER GROUP, LLC
  1. Position the sensor (2), install the front Active Damping System (ADS) sensor bolt (3) and tighten to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  2. Connect the wiring harness connector (1) and seat the terminal locking tab.
