Pedal, Accelerator: Installation

Courtesy of CHRYSLER GROUP, LLC

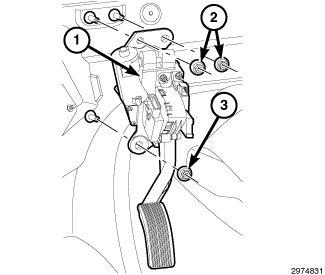

Position the pedal assembly (1) to the mounting studs.
Install the three pedal assembly retaining nuts (2, 3) and tighten to the proper torque specification. Refer to FUEL INJECTION, GAS, TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

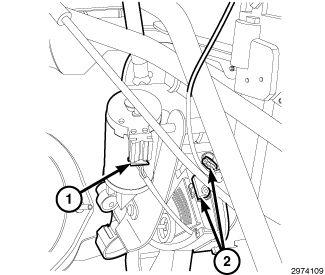

Connect both electrical connectors at the Accelerator Position Sensor (APPS) (2).
Connect the electrical connector at the accelerator pedal adjuster motor (1).

Courtesy of CHRYSLER GROUP, LLC

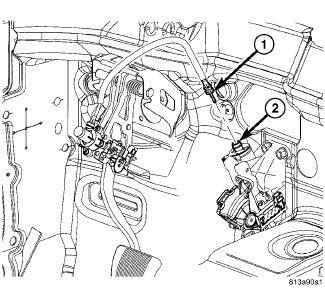

If equipped with adjustable pedals, synchronize the accelerator pedal to the brake pedal and then connect the adjuster cable (1) to the accelerator pedal adjuster motor (2). Refer to PEDAL(S), BRAKE AND/OR ACCELERATOR, ADJUSTABLE, INSTALLATION .
Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
Connect the negative battery cable.
