Removal And Installation: Installation

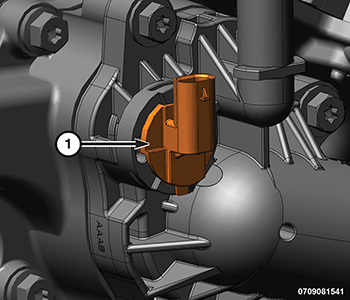

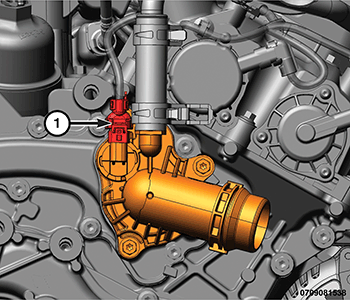

- Install the Engine Coolant Temperature (ECT) sensor (1) into the thermostat and turn clockwise 1/4 turn to lock in place.
- Connect the wire harness connector to the ECT sensor (1).
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Install the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL AND INSTALLATION , BELLY PAN, FRONT, REMOVAL AND INSTALLATION and/or BELLY PAN, SIDE, REMOVAL AND INSTALLATION .
- Remove the support and lower the vehicle.
- Fill the cooling system. Refer to STANDARD PROCEDURE .
- Connect the negative battery cable.
