Removal And Installation: Removal

Drain the cooling system. Refer to STANDARD PROCEDURE .
Remove the left front lamp unit. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
Remove the right front lamp unit. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
Remove the cooling fan. Refer to FAN, COOLING, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Remove the left side lower radiator hose (1).
Remove the support and lower the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Remove the two push fasteners (1) then remove the left radiator air deflector (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the right side transmission cooler bolt (1).
Remove the right side A/C condenser bolt (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the left side transmission bolts (1) and position aside the transmission cooler.
Remove the left side A/C condenser bolts (2).

Courtesy of CHRYSLER GROUP, LLC
Lift up the condenser and disengage the retaining tabs and position aside.

Courtesy of CHRYSLER GROUP, LLC
Remove the right side upper radiator hoses (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the radiator vent hose (1) from the radiator.

Courtesy of CHRYSLER GROUP, LLC
Remove the left radiator mount bolts (1) and the end cap.

Courtesy of CHRYSLER GROUP, LLC
Remove the right radiator mount bolts (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the right radiator end cap (1).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Right side shown in illustration, left side similar.

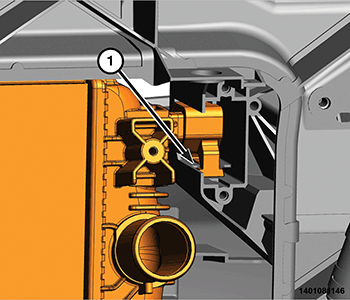

Pull the radiator rearward to disengage the mounts (1) and remove the radiator from the bottom.
