Removal And Installation: Installation

GC0144482Courtesy of CHRYSLER GROUP, LLC
  1. Clean the block heater sealing surface.
  2. Install the engine block heater (1) and tighten the bolt (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Connect the power cord plug to the engine block heater (1).

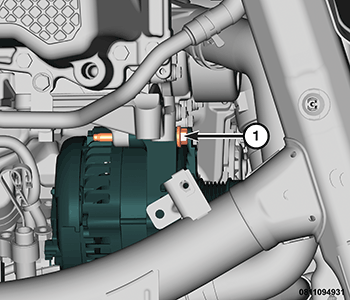

    GC0178239Courtesy of CHRYSLER GROUP, LLC
  4. Install the generator and hand tighten the lower bolt (1).

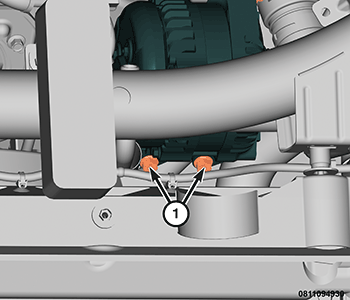

    GC0177217Courtesy of CHRYSLER GROUP, LLC
  5. Install and hand tighten the two upper generator bolt (1).
  6. Tighten the upper and lower generator bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  7. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
  8. Install the engine belly pan (Refer to REMOVAL AND INSTALLATION ).
  9. Connect the negative battery cable(s) (Refer to REMOVAL AND INSTALLATION ).
