Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

LEFT CAPACITOR

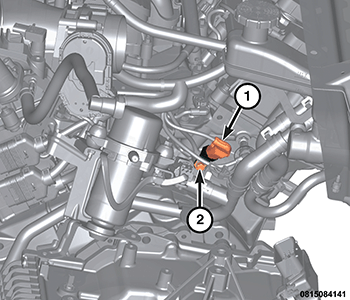

1. Install the ignition coil capacitor (3) and position the fuel injector harness ground wire, tighten the bolt (2) to the proper specification. Refer to TORQUE SPECIFICATIONS .
2. Connect the ignition capacitor wire harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

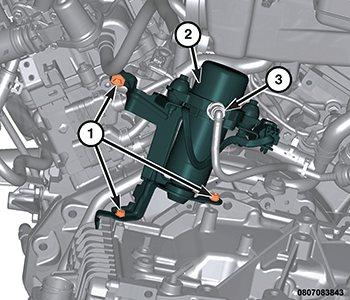

3. Position the vacuum pump and bracket assembly (2) in position and tighten the bolts (1) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS  .
4. Install the air cleaner resonator. Refer to RESONATOR, AIR CLEANER, REMOVAL AND INSTALLATION .
5. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.

Courtesy of CHRYSLER GROUP, LLC

RIGHT CAPACITOR

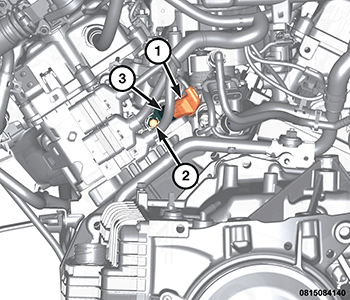

1. Install the ignition coil capacitor and tighten the bolt (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
2. Connect the ignition capacitor wire harness connector (1).
3. Install the air cleaner resonator. Refer to RESONATOR, AIR CLEANER, REMOVAL AND INSTALLATION .
4. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
