Removal And Installation: Installation
- Using compressed air, blow out any dirt or contaminants from around the top of spark plug.
- Check the condition of the ignition coil rubber boot. Inspect the opening of the boot for any debris, tears or rips. Carefully remove any debris with a lint free cloth.CAUTION:
Do not apply a silicone based grease such as Mopar® Dielectric Grease to the ignition coil rubber boot. The silicone based grease will absorb into the boot causing it to stick and tear.
- Place a small, 360° bead of Mopar® Molykote G-5008
lubricant (1) along the inside opening of the coil boot approximately 1 to 2 mm from the chamfer edge but not on the chamfered surface.

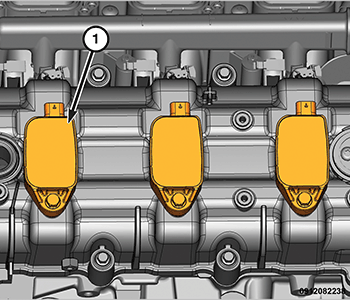

- Position the ignition coil (1) into the cylinder head cover opening. Using a twisting action, push the ignition coil onto the spark plug.
- Install the ignition coil mounting bolt and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .

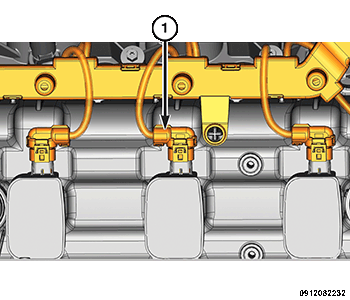

- Connect and lock the electrical connector (1) to the ignition coil.
- If removed, install the insulator and the upper intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION
.

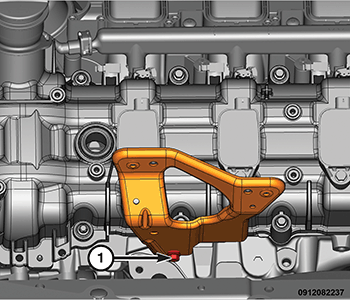

- If loosened, tighten the upper intake manifold support bracket bolt (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
