Removal And Installation: Installation

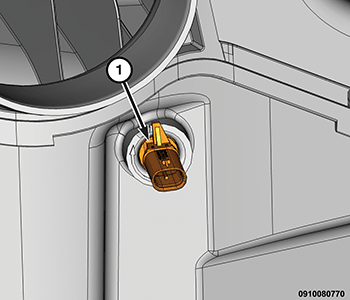

GC0178349Courtesy of CHRYSLER GROUP, LLC
  1. Install the inlet air temperature sensor (1) to the air cleaner resonator by turning the sensor 1/4 turn in the clockwise direction.

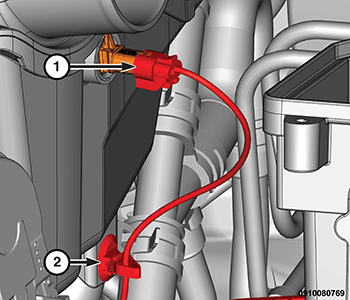

    GC0178117Courtesy of CHRYSLER GROUP, LLC
  2. Attach the wire to the retainer (2) and connect the inlet air temperature sensor wire harness connector (1).
  3. Connect the negative battery cable.
