Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

Connect the wire harness electrical connector (1) to the power outlet receptacle (2).
Install the power outlet mount ring into the panel.
Align the splines on the outside of the power outlet receptacle base connector receptacle with the grooves on the inside of the mount ring.

Courtesy of CHRYSLER GROUP, LLC

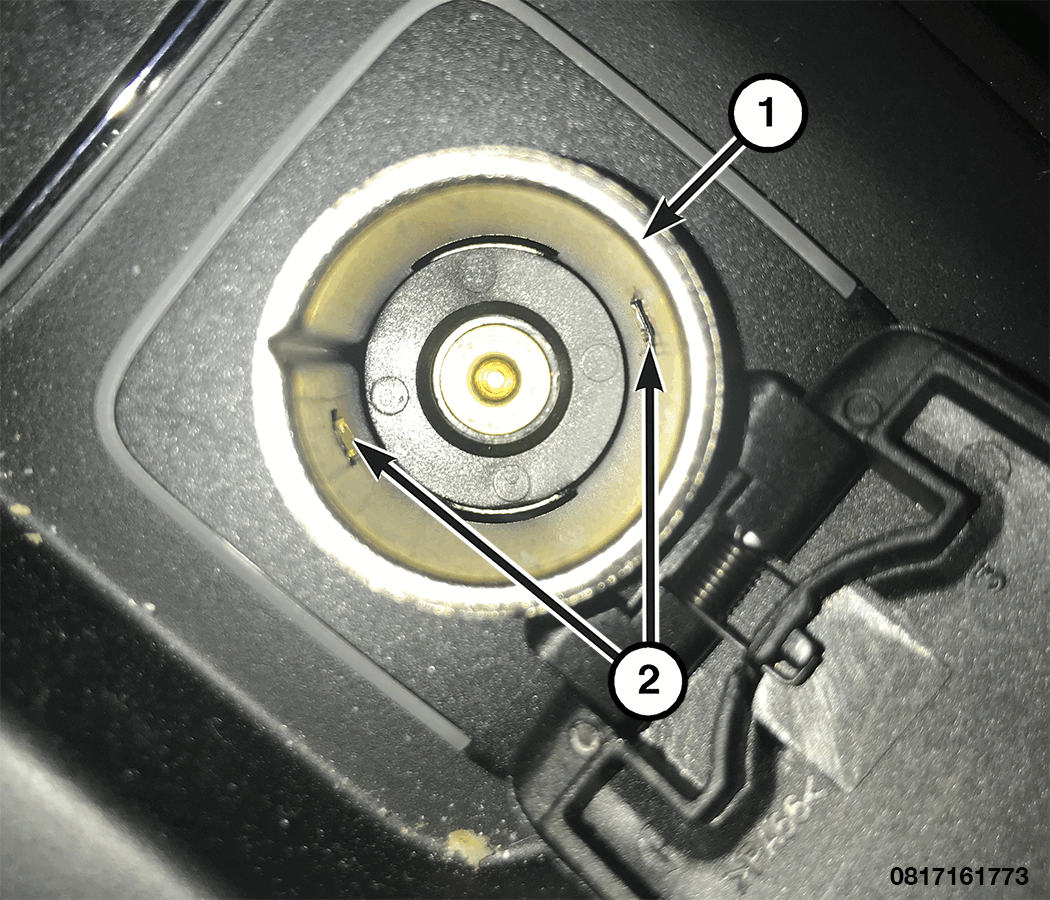

Press firmly on the power outlet receptacle base (1) until the retaining bosses of the mount ring are fully engaged in their receptacles.
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
