Motor, Window Regulator: Removal

  1. Partially raise or lower the door glass to relieve tension on motor and cables where possible. Secure the glass as necessary.
  2. Disconnect and isolate the negative battery cable.
  3. Remove the door interior trim panel or Refer to PANEL, DOOR TRIM, REMOVAL . For the appropriate procedure. Refer to PANEL, REAR DOOR TRIM, INSTALLATION .

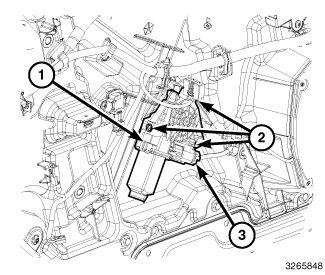

    GC0144826Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the power window motor electrical connector (3) from the motor electrical connector receptacle.
  5. Remove the three fasteners (2) that secure the power window motor and gear assembly (1) to the carrier plate.
    GC0139229Courtesy of CHRYSLER GROUP, LLC
  6. Using a suitable flat bladed tool, lightly pry the cable drive (1) away from the motor (2) and remove the motor and gear assembly.
