Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Left side shown, right side similar.

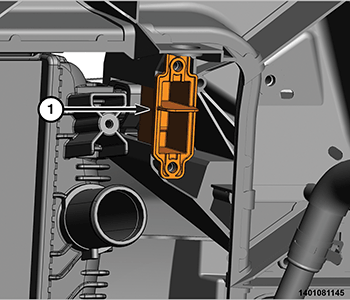

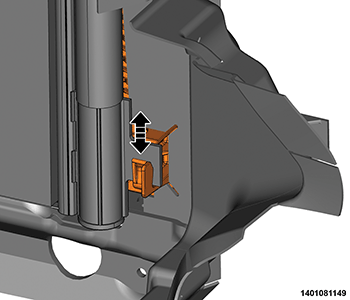

Position the radiator into the vehicle and push forward to engage the mounts (1).

Courtesy of CHRYSLER GROUP, LLC

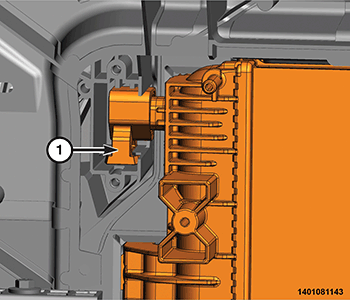

Install the right radiator end cap (1).

Courtesy of CHRYSLER GROUP, LLC

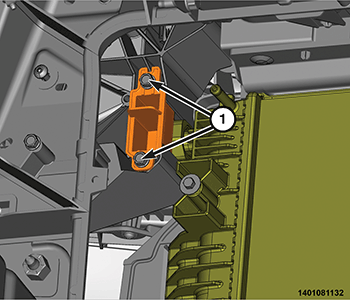

Install and securely tighten the right radiator mount bolts (1).

Courtesy of CHRYSLER GROUP, LLC

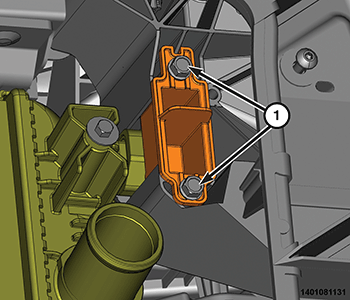

Install the left radiator mount end cap and securely tighten the bolts (1).

Courtesy of CHRYSLER GROUP, LLC

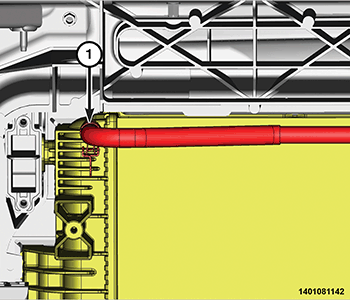

Install the radiator vent hose (1) onto the radiator.

Courtesy of CHRYSLER GROUP, LLC

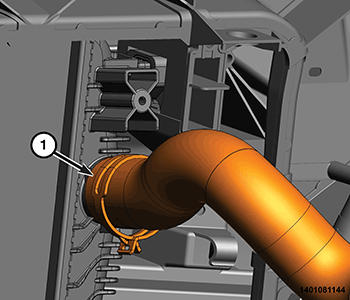

Install the radiator upper hose (1).

Courtesy of CHRYSLER GROUP, LLC
Position the condenser and push down to engage the retaining tabs.

Courtesy of CHRYSLER GROUP, LLC

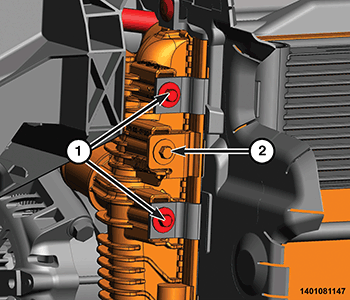

Install the left side condenser bolts (2) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
Position the transmission cooler onto the radiator and tighten the bolts (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

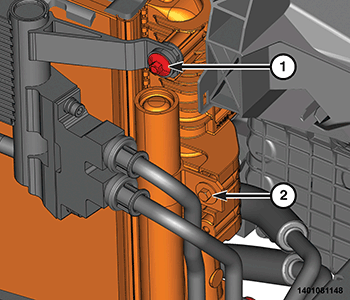

Install the right side condenser bolt (2) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
Install the right side transmission cooler bolt (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

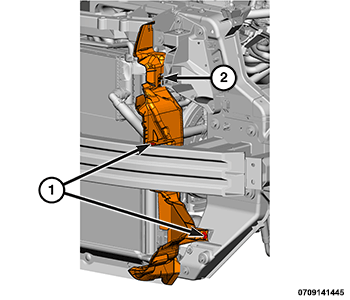

Position the left radiator air deflector (2) and install the two push fasteners (1).
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC

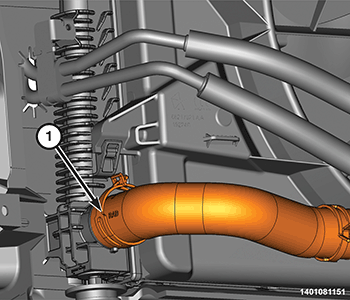

Install the left side lower radiator hose (1).
Install the cooling fan. Refer to FAN, COOLING, REMOVAL AND INSTALLATION .
Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
Fill the cooling system. Refer to STANDARD PROCEDURE .
