Removal And Installation: Installation

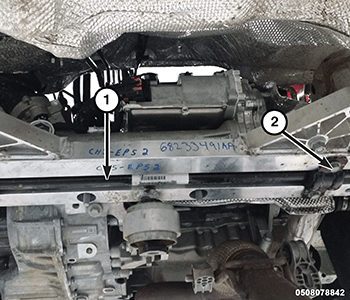

GC0178165Courtesy of CHRYSLER GROUP, LLC
  1. Position the stabilizer bar (1) in the crossmember.
  2. Install the two stabilizer bar brackets.
  3. Install the stabilizer bar bracket bolts (2). Tighten the stabilizer bar bracket bolts to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
    GC0178112Courtesy of CHRYSLER GROUP, LLC
  4. Install the stabilizer bar link to the stabilizer bar and install the stabilizer bar link nut and tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  5. Connect the outer tie rod end to the steering knuckle and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  6. Install the front crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
  7. Install the tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
  8. Remove the supports and lower the vehicle.
