5.7L Dual Fan

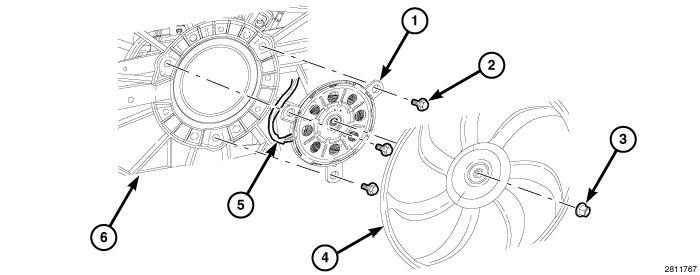

GC0144322Courtesy of CHRYSLER GROUP, LLC
  1. Install the fan blade (4) to the fan motor. Tighten the nut (3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  2. Install the fan motor assembly to the shroud (6). Tighten nut (3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  3. Route the fan motor wiring harness (5) through the fan shroud (6).
    GC0144489Courtesy of CHRYSLER GROUP, LLC
  4. Install the cooling fan assembly (1) into the lower radiator mounts (2).

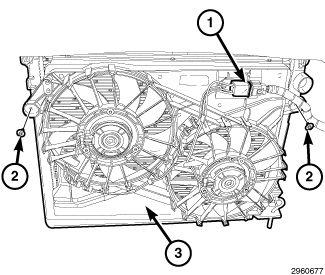

    GC0144533Courtesy of CHRYSLER GROUP, LLC
  5. Install the cooling fan mounting bolts (2). Tighten bolts to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  6. Connect the cooling fan wire harness connector (1).

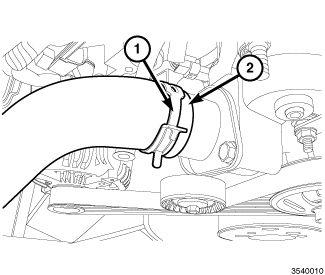

    GC0144930Courtesy of CHRYSLER GROUP, LLC
  7. Install the upper radiator hose.
  8. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
  9. Fill the cooling system. Refer to STANDARD PROCEDURE .
  10. Operate the engine until it reaches normal operating temperature.
