Bottle, Pressurized Coolant: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Install the lower coolant hose.

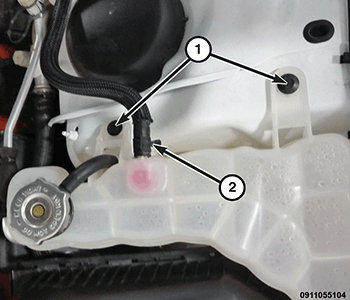

2. Install the pressurized coolant bottle. Tighten bolts (1) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
3. Install the coolant hose (2).
4. Fill cooling system. Refer to STANDARD PROCEDURE .
