Sensor, Oxygen: Removal: 5.7L: Downstream

  1. Disconnect and Isolate the negative battery cable
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    CAUTION:

    When disconnecting the oxygen sensor electrical connector, do not pull directly on the wire going into the sensor. The sensor wiring can be damaged resulting in sensor failure.

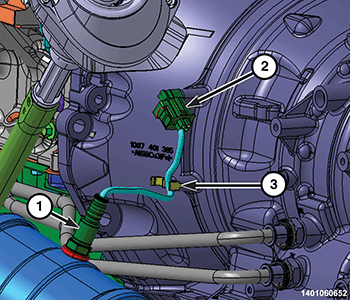

    GC0170158Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the oxygen sensor wire harness connector (2).
  4. Disengage the wire harness from the retainer (3).
  5. Remove the oxygen sensor (1).
  6. Clean the threads in the catalytic converters using an appropriate tap.
