Sensor, Oxygen: Removal: 3.6L: Downstream
WARNING:
The exhaust pipes and catalytic converter become very hot during engine operation. Allow the engine to cool before removing the oxygen sensor.
- Disconnect and isolate the negative battery cable.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE
.CAUTION:
When disconnecting the oxygen sensor electrical connector, do not pull directly on the wire going into the sensor. The sensor wiring can be damaged resulting in sensor failure.

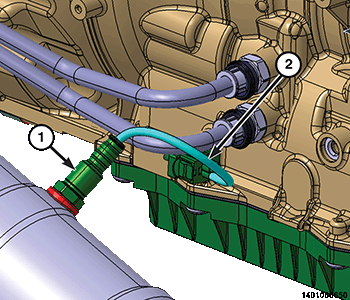

- Disconnect the oxygen sensor wire harness connector (2).
- Remove the oxygen sensor (1).
- Clean the exhaust pipe threads using an appropriate tap.
