Tube, Fuel Tank Filler: Installation

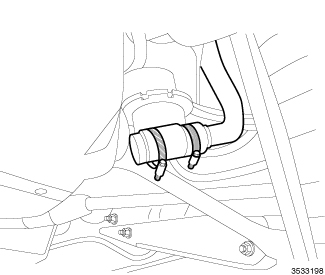

GC0144927Courtesy of CHRYSLER GROUP, LLC
  1. Position the fuel filler tube into the vehicle.
  2. Insert the fuel filler tube rubber hose into the fuel tank filler neck.

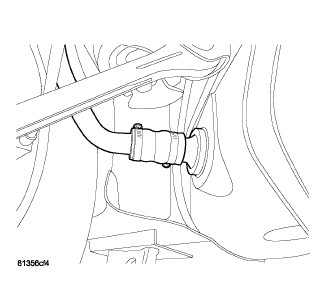

    GC0080432Courtesy of CHRYSLER GROUP, LLC
  3. Slide the fuel filler tube hose clamp into position and securely tighten.
    GC0152112Courtesy of CHRYSLER GROUP, LLC
  4. Install the fuel filler tube retaining nut (5) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
  5. Connect the fuel filler tube ORVR vent line (3) at the filler tube (4).
    GC0080691Courtesy of CHRYSLER GROUP, LLC
  6. Install the rear wheelhouse splash shield (2) to the body and the push-pins (1).
  7. Install the left rear tire.
  8. Remove support and lower the vehicle.

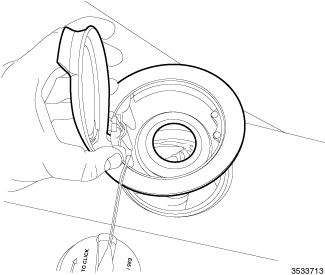

    GC0148515Courtesy of CHRYSLER GROUP, LLC
  9. Align the fuel filler tube to the fuel filler housing rubber seal.
  10. Firmly press the fuel filler housing into the fender till housing locks into place.

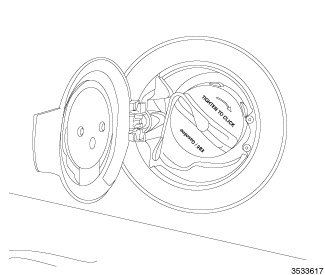

    GC0148514Courtesy of CHRYSLER GROUP, LLC
  11. Check the fuel filler tube housing for flushness to fender.
  12. Install the fuel cap.
  13. Connect the negative battery cable.
  14. Fill the fuel tank and check for leaks.
