Sensor, Coolant Temperature: Removal: 2.4L

CAUTION:

Do not loosen radiator draincock with system hot and pressurized. Serious burns from coolant can occur.

  1. Remove the engine cover.
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Raise and support the vehicle.
  4. Remove the belly pan.
  5. Drain the cooling system.
  6. Lower vehicle.
  7. Remove the battery. Refer to BATTERY, REMOVAL .
  8. Remove the PCM. Refer to MODULE, POWERTRAIN CONTROL, REMOVAL .
    GC0159726Courtesy of CHRYSLER GROUP, LLC
  9. Remove the PCM mount bolts (2 & 4).
  10. Remove the PCM mount (3) from the battery tray (1).
    GC0156193Courtesy of CHRYSLER GROUP, LLC

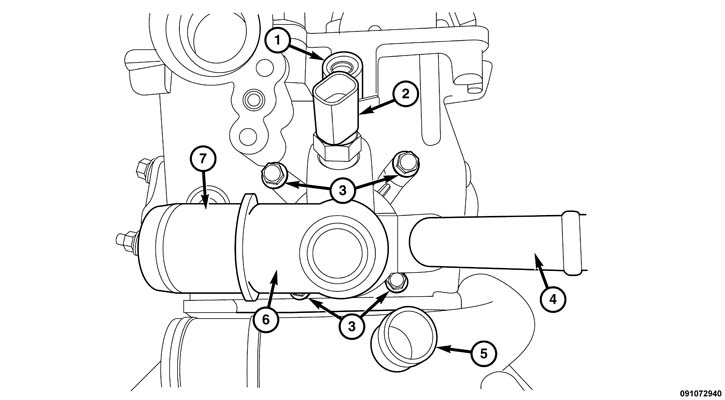

  11. Disconnect the engine coolant temperature sensor harness connector.
  12. Remove the engine coolant temperature sensor (2).
