Sensor, Coolant Temperature: Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

1. Apply MOPAR™ thread sealant with PFTE to sensor threads.

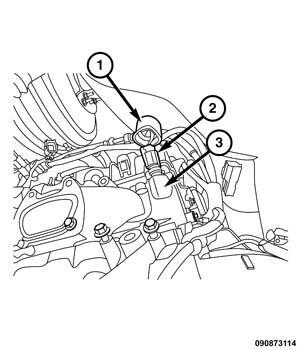

2. Install the temperature sensor (2) to cylinder head (3). Tighten the sensor to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
3. Connect electrical connector to temperature sensor.
4. Position the heat shield (1) around the temperature sensor.
5. Replace any lost engine coolant. Refer to STANDARD PROCEDURE .
