Radiator, Engine Cooling: Removal: 3.6L

  1. Remove the engine cover.
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  3. Drain the cooling system. Refer to STANDARD PROCEDURE .
  4. Remove the multipurpose bracket. Refer to BRACKET, MULTIPURPOSE, REMOVAL .

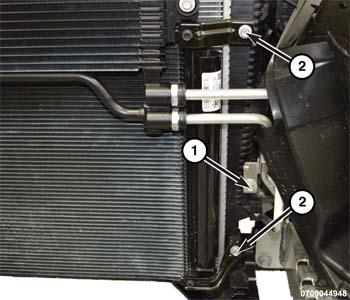

    GC0162599Courtesy of CHRYSLER GROUP, LLC
  5. Remove the transmission oil cooler bracket bolt (1).
  6. Remove the left side condenser mounting bracket bolts (2) from the radiator.

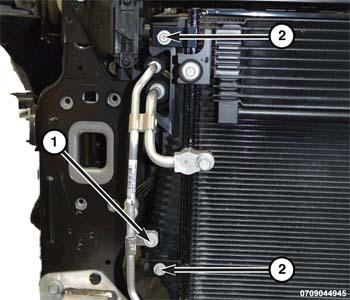

    GC0162514Courtesy of CHRYSLER GROUP, LLC
  7. Remove the right side condenser mounting bracket bolts (2) from the radiator.
  8. Remove the liquid line support bracket fastener (1) from the radiator.

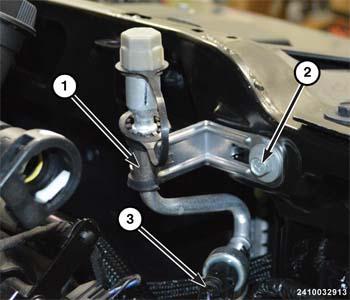

    GC0159554Courtesy of CHRYSLER GROUP, LLC
  9. Remove the bolt (2) from the A/C service port support bracket (1) and position aside.
  10. Disconnect the cooling fan wire harness connector.
  11. Disconnect the upper radiator hose from the radiator.
  12. Disconnect the lower radiator hose from the radiator.

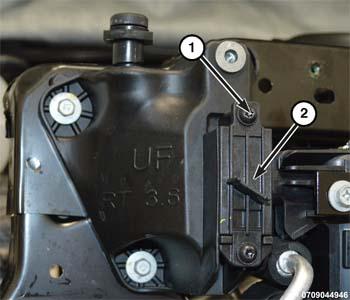

    GC0162615Courtesy of CHRYSLER GROUP, LLC
  13. Remove the upper radiator mount cover (2) fasteners (1) from both sides of the upper radiator mounts.

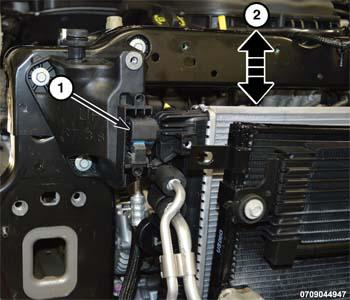

    GC0162597Courtesy of CHRYSLER GROUP, LLC
  14. Separate the condenser from the radiator and position slightly forward.
  15. Tilt the radiator forward (1), removing the radiator from the upper mounts.
  16. Lift the radiator and cooling fan assembly upward (2) removing it from the vehicle.
  17. Remove the two mounting fasteners from the cooling fan assembly.
  18. Slide the cooling fan assembly upward from the mounting brackets and separate it from the radiator.
