Pump, Water: Installation: 3.6L

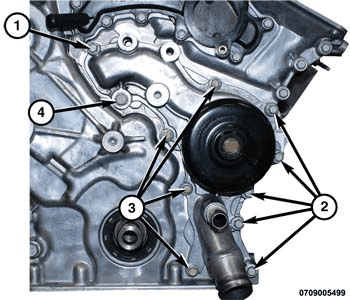

GC0160029Courtesy of CHRYSLER GROUP, LLC

The water pump on 3.6L engines is bolted directly to the engine timing chain case cover.

  1. Clean mating surfaces.
  2. Using a new seal, position water pump and install mounting bolts (1, 2). Note the shorter bolts (3) bolt directly to the timing cover. Tighten the M6 water pump mounting bolts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS . Tighten the M8 water pump mounting bolt (4) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Spin water pump to be sure that pump impeller does not rub against timing chain case/cover (1).
  4. Install the idler pulley. Refer to PULLEY, IDLER, INSTALLATION .
  5. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
  6. Install the inner wheel housing splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
  7. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
  8. Lower vehicle.

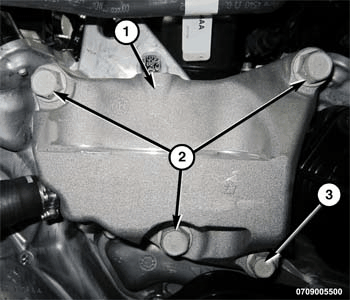

    GC0159456Courtesy of CHRYSLER GROUP, LLC
  9. Slightly raise the engine to install the engine mount bracket (1). Tighten the M8 mounting bolt (3) to the proper torque specification. Refer to 3.6L TORQUE SPECIFICATIONS  . Tighten the M12 mounting bolts (2) to the proper torque specification. Refer to 3.6L TORQUE SPECIFICATIONS  .

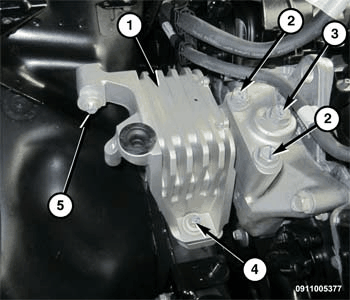

    GC0158452Courtesy of CHRYSLER GROUP, LLC
  10. Install the right engine mount isolator (1) and tighten bolts:
    • Align the engine so that the engine is flush against the engine mount.
    • Hand tighten the center engine to engine bracket bolt (3).
    • Hand tighten the outer engine to engine bracket bolts (2).
    • Hand start the engine mount to strut tower (5).
    • Tighten mount to frame rail bolts (4) to 65 N.m (48 ft. lbs.).
    • Tighten the mount to strut tower bolt to 65 N.m (48 ft. lbs.).
    • Tighten mount to mount bracket bolts (2, 3) to 72 N.m (53 ft. lbs.).
  11. Install the coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, INSTALLATION .
  12. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
  13. Evacuate air and refill cooling system. Refer to STANDARD PROCEDURE .
  14. Remove the engine support fixture.
  15. Connect the negative battery cable. Tighten the nut to the proper torque specification. Refer to TORQUE .
  16. Check the cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
