Fan, Cooling: Installation: 3.6L

GC0162509Courtesy of CHRYSLER GROUP, LLC

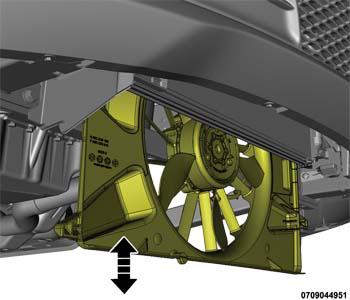

  1. Guide the cooling fan assembly into position through the bottom of the engine compartment.
    GC0162609Courtesy of CHRYSLER GROUP, LLC

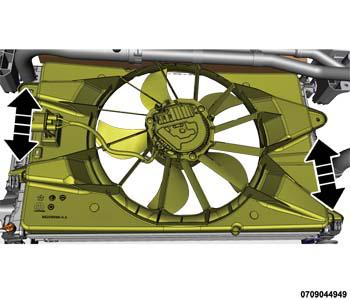

  2. Once into position, insert the lower tabs into the mounting brackets on the radiator.
    GC0162652Courtesy of CHRYSLER GROUP, LLC

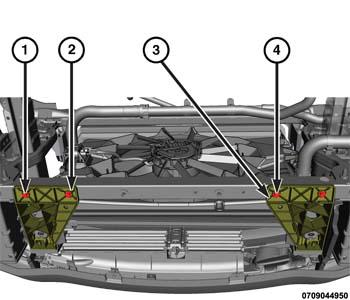

  3. Install the right lower radiator mount bracket (3) and securely tighten the fasteners (4).
  4. Install the left lower radiator mount bracket (2) and securely tighten the fasteners (1).
    GC0162499Courtesy of CHRYSLER GROUP, LLC

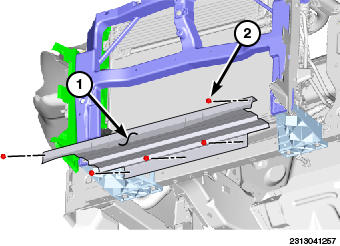

  5. Place the lower radiator air deflector (1) into position and install the five push fasteners (2).
    GC0162226Courtesy of CHRYSLER GROUP, LLC
  6. Install the lower fascia closeout panel (2) and securely tighten the fasteners.
  7. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
    GC0162515Courtesy of CHRYSLER GROUP, LLC

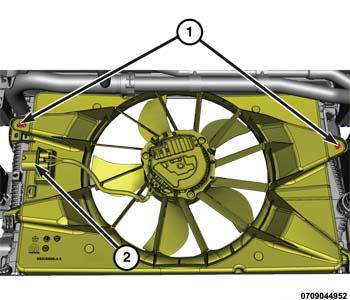

  8. Install the two cooling fan assembly retaining bolts (1) and tighten the bolts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  9. Connect the wire harness connector (2) to the cooling fan assembly.
  10. Place the upper front fascia closeout into position and install the push fasteners.
  11. Install the engine cover.
  12. Connect the negative battery cable.
