Description 3.6L
The cooling system regulates engine operating temperature. It allows the engine to reach normal operating temperature as quickly as possible, maintains normal operating temperature and prevents overheating.
The cooling system also provides a means of heating the passenger compartment. The cooling system is pressurized and uses a centrifugal water pump to circulate coolant throughout the system. A separate and remotely mounted, coolant bottle is used.

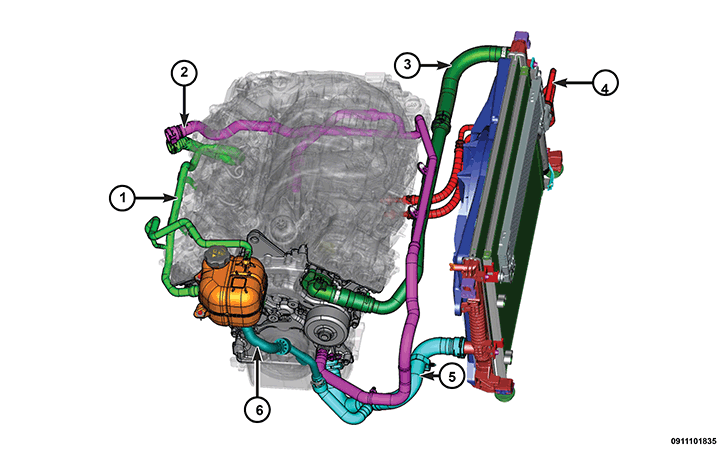

- Heater core supply hose (1).
- Heater core return hose (2).
- Radiator inlet hose (3).
- Transmission cooler tubes/hoses (4).
- Radiator outlet hose (5).
- Pressured coolant bottle outlet (6).
