Module, Power Inverter: Installation

Courtesy of CHRYSLER GROUP, LLC

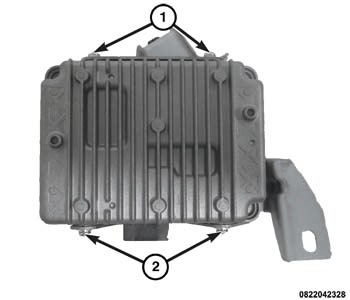

1. Position the Power Inverter Module (PIM) to the bracket so that the upper (1) and lower (2) screws can be inserted securing the module to the bracket.

   Courtesy of CHRYSLER GROUP, LLC

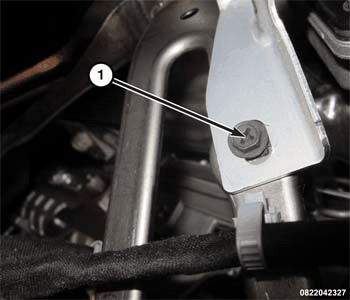

2. Position the PIM and bracket to the vehicle for installation. Use a screw (1) to secure the bracket arm in place.

   Courtesy of CHRYSLER GROUP, LLC

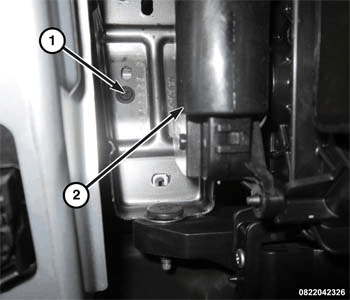

3. Insert the screw (1) securing the bracket located next to the ventilation door motor (2).
4. Connect the electrical connector to the PIM.

   Courtesy of CHRYSLER GROUP, LLC

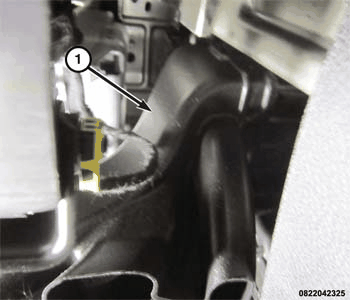

5. Install the ventilation duct (1). Refer to DUCT, FLOOR DISTRIBUTION, INSTALLATION .
6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
