Module, Radio Frequency (RF Hub): Removal: Removal

WARNING: This page is about a different car, the 2015 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

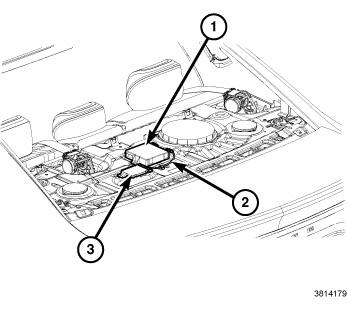

Fig 1: Radio Frequency Hub Module, Body Wire Harness Connector & Remote Start Antenna Connector
GC0156086Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the trim panel from the rear shelf. Refer to PANEL, REAR SHELF, REMOVAL .
  3. Remove the two push-in plastic fasteners that secure the Radio Frequency Hub Module (RFHM) to the shelf panel support.
  4. If the vehicle is so equipped, disconnect the remote start antenna (3) connector from the RFHM.
  5. Disconnect the body wire harness connectors (1, 2) from the RFHM.
  6. Remove the RFHM from the vehicle.
