Module, Comfort Seat And Wheel: Removal: Removal

WARNING: This page is about a different car, the 2015 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

The Heated Seat Module mounting tab can be damaged during module removal and installation. Use care to properly align tab to prevent binding that could result in tab breakage.

  1. Position the driver front seat to the full rearward position.
  2. Disconnect and isolate the battery negative cable.
  3. If necessary, remove both front seat to floor retaining bolts to lift front seat and gain access to the underside of the seat.

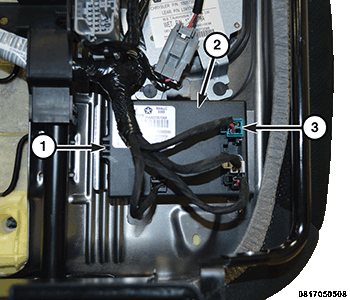

    Fig 1: Comfort Seat And Wheel Module, Retaining Tab & Connectors
    GC0170036Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect all wiring harness connectors (3) from the Comfort Seat and Wheel Module (CSWM) assembly (2).
  5. Unsnap the CSWM retaining tab (1) from the seat pan.
  6. Remove the CSWM from the vehicle.
