P050B-Cold Start Ignition Timing Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

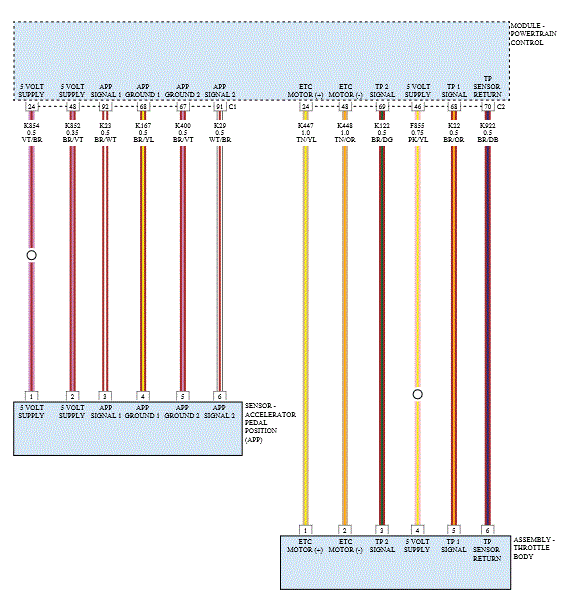

Fig 1: Electronic Throttle Control (ETC) & Throttle Position Sensors (TPS) - Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
