P0461-Fuel Level Sensor 1 Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

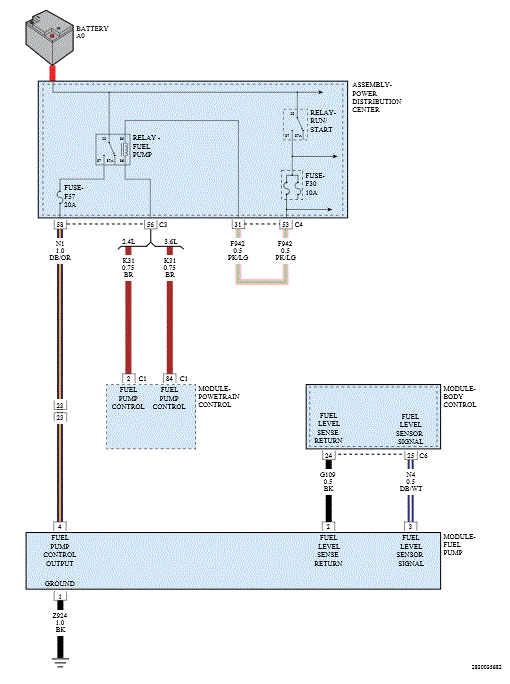

Fig 1: Fuel Delivery System Wiring Diagram
GC0168325Courtesy of CHRYSLER GROUP, LLC
