Battery System - Service Information: Battery: Installation: Installation

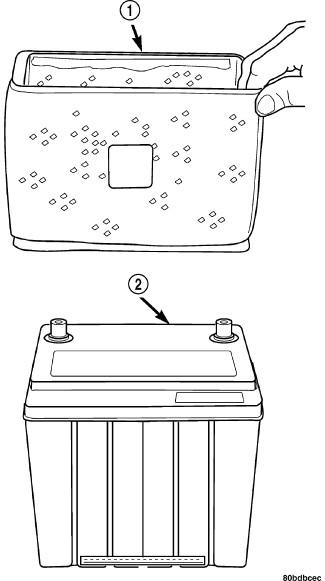

Fig 1: Identifying Battery Case & Thermal Guard

Courtesy of CHRYSLER GROUP, LLC

1. Position the battery (2) onto the battery tray.
2. Install the battery hold down clamp to the proper SPECIFICATIONS .
3. Install the battery thermal cover (1).
   Fig 2: Battery & Cables

   Courtesy of CHRYSLER GROUP, LLC
4. Connect the battery positive cable (1). Tighten to the proper SPECIFICATIONS
5. Connect the negative battery cable (3). If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable. Tighten the nut to the proper SPECIFICATIONS .
