Non SRT

The front suspension for both All-Wheel-Drive (AWD) and Non SRT Rear-Wheel-Drive (RWD) vehicles is a long and short arm design.

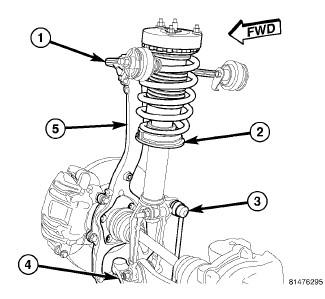

Fig 1: Front Suspension - Awd

Courtesy of CHRYSLER GROUP, LLC

Each side of the AWD front suspension includes the following components:

• Hub And Bearing
• Knuckle (5)
• Lower Control Arm (4)
• Shock Assembly (2)
• Stabilizer Bar and Link (3)
• Upper Control Arm (1)

Fig 2: Front Suspension

Courtesy of CHRYSLER GROUP, LLC

Each side of the Non SRT RWD front suspension includes the following components:

• Hub And Bearing
• Knuckle (3)
• Lower Control Arm (5)
• Shock Assembly (1)
• Stabilizer Bar and Link (7)
• Tension Strut (4)
• Upper Control Arm (2)
