6.4L Dual Fan

Disconnect negative battery cable.
Remove the air filter housing assembly Refer to BODY, AIR CLEANER, REMOVAL .

Fig 1: Throttle Body, Connector & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the throttle body (1). Refer to THROTTLE BODY, REMOVAL .
Raise and secure vehicle.
If equipped, remove the lower closeout panel.
Drain coolant into a clean container. Refer to STANDARD PROCEDURE .
Lower vehicle.

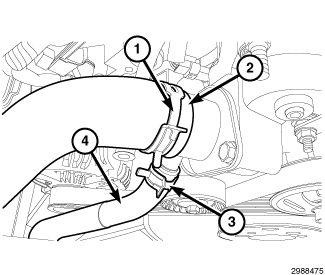

Fig 2: Upper Radiator Hose, Clamp, Oil Cooler Return Line Hose & Clamp
Courtesy of CHRYSLER GROUP, LLC
Remove the oil cooler return line (4) from the upper radiator hose (2).
Remove the upper radiator hose (2).

Fig 3: Cooling Fan Electrical Connector, Cooling Fan Mounting Bolts & Radiator Cooling Fan Assembly
Courtesy of CHRYSLER GROUP, LLC
Disconnect the cooling fan electrical connector (1).
Remove the cooling fan mounting bolts (2).
Using care. Remove the radiator cooling fan assembly (3) from vehicle.

Fig 4: Fan Motor Wiring Harness, Fan Shroud, Fan Blade & Bolts
Courtesy of CHRYSLER GROUP, LLC
Removing the fan motor wiring harness (5) from the fan shroud (6).
Remove the fan blade (4) from the fan motor.
Remove the bolts (2) that support the fan motor to the shroud.
