Cooler, Power Steering: Removal: SRT

Disconnect and isolate battery negative cable from battery post.
Siphon power steering fluid from pump reservoir.
Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove belly pan. Refer to BELLY PAN, REMOVAL .

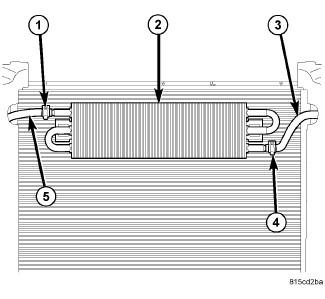

Fig 1: SRT8 FLUID COOLER AND HOSES
Courtesy of CHRYSLER GROUP, LLC
Remove hose clamp (1), then return hose (5) from steering gear at cooler (2).
Remove hose clamp (4), then return hose (3) to reservoir at cooler (2).

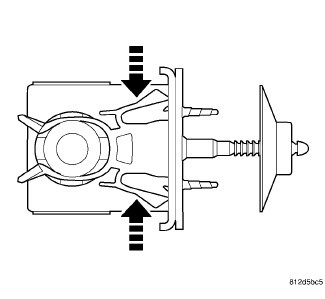

Fig 2: COOLER RETAINER CLIPS
Courtesy of CHRYSLER GROUP, LLC
Push in on cooler mounting clip tabs.
Remove cooler from clips mounted to cooling module.
