Non-Pressure System

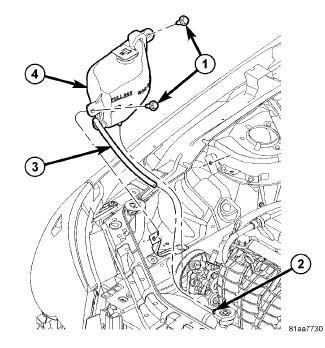

Fig 1: Identifying Coolant Recovery Container - 2.0/2.4l

GC0120877

Courtesy of CHRYSLER GROUP, LLC

1 - BOLT

2 - RADIATOR NIPPLE

3 - HOSE

4 - COOLANT RECOVERY CONTAINER - NON-PRESSURE

Connect the overflow hose (4) to the radiator nipple (2).
Install container in mounting position and install mounting bolts (1).
Tighten mounting bolts to 10 N.m (89 in. lbs.).
Fill cooling system. Refer to STANDARD PROCEDURE .
