Pressure System

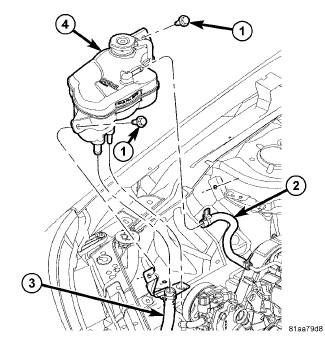

Fig 1: View Of Coolant Recovery Container - Pressure System

Courtesy of CHRYSLER GROUP, LLC

The coolant pressure container consists of a pressure chamber and an overflow chamber. The coolant pressure container is mounted in the right side engine compartment. An overflow hose connects the pressure chamber to the overflow chamber.

NOTE:

Coolant will normally be in the pressure chamber side of the coolant bottle. The overflow chamber should normally be empty
