Buckle, Seat Belt: Installation: Rear

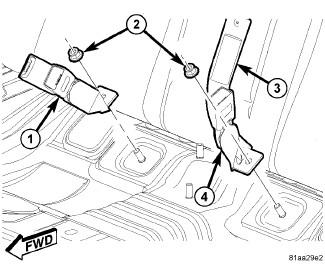

Fig 1: Removing/Installing Rear Seat Belt Buckle

Courtesy of CHRYSLER GROUP, LLC

NOTE:

On left side buckle, make sure you have the center seat belt webbing (3) anchor underneath the buckle before you install and tighten nut.

Place buckle (1 or 4) on stud and install nut (2). Tighten nut to 101 N.m (74.5 ft. lbs.).
Install rear seat cushion. Refer to COVER, SEAT CUSHION, INSTALLATION or COVER, SEAT CUSHION, INSTALLATION .
