Fan Module-Radiator Cooling C1 (D3022A)

Harness-Family: Front_End_Module

Color: BLACK

Gender: FEMALE

Part Number: 12033769

Part Description: CONNECTOR ASSEMBLY - M/P P2S

Connector No: D3022A

Option: ~~

Repair Kit Part Number: 68018943AA

Cavity Count: 2

Fig 1: Fan Module-Radiator Cooling C1 Connector End View

Courtesy of CHRYSLER

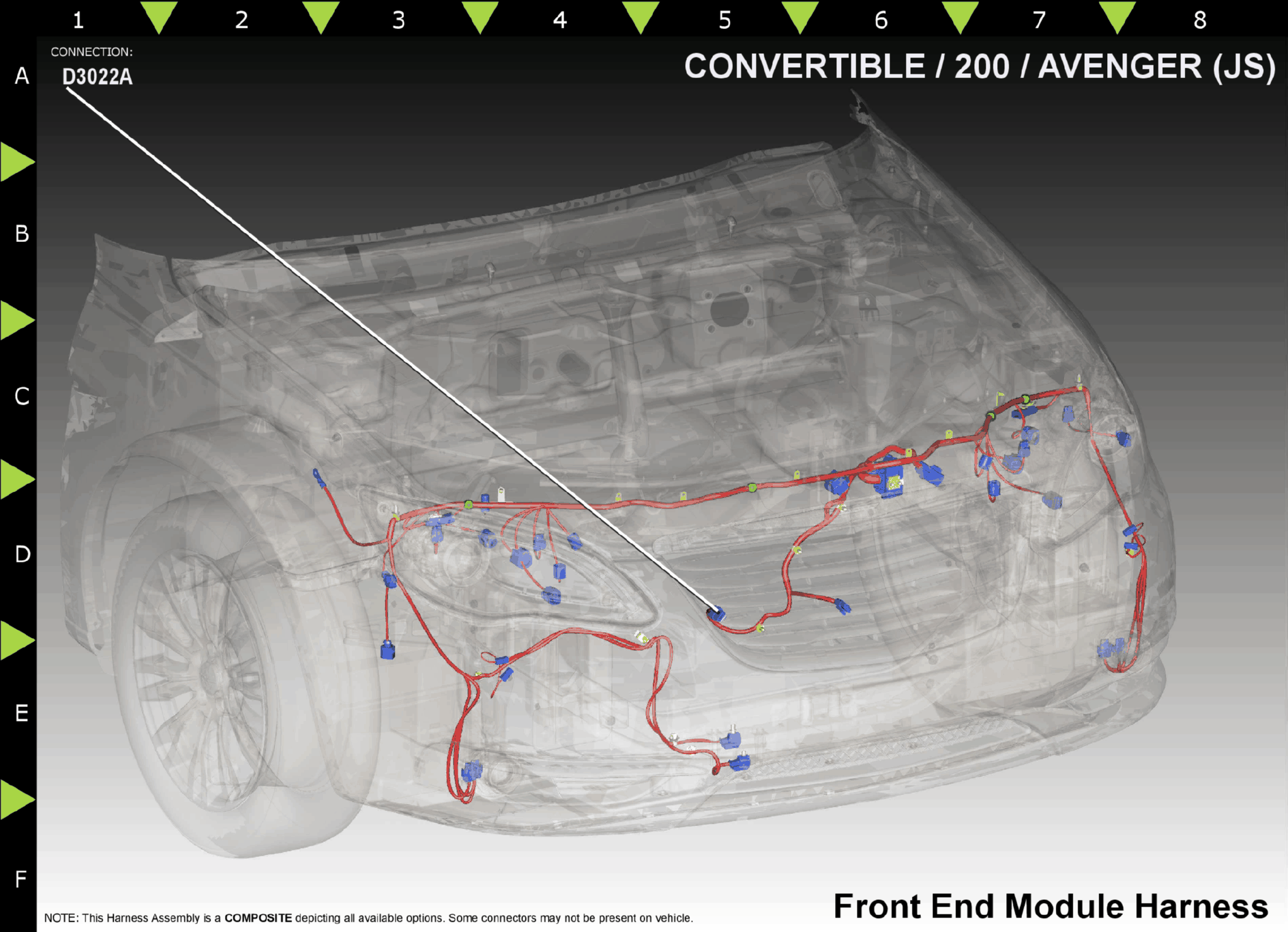

Fig 2: Fan Module-Radiator Cooling C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

N23

LOW SPEED RAD FAN CONTROL

N/A

N210

DB/DG

RAD FAN HIGH/LOW CONTROL FEED

N/A

⁽¹⁾	Pins not listed are not used for this connector
