B254D-Tonneau Extend Limit Switch Circuit Low: Notes

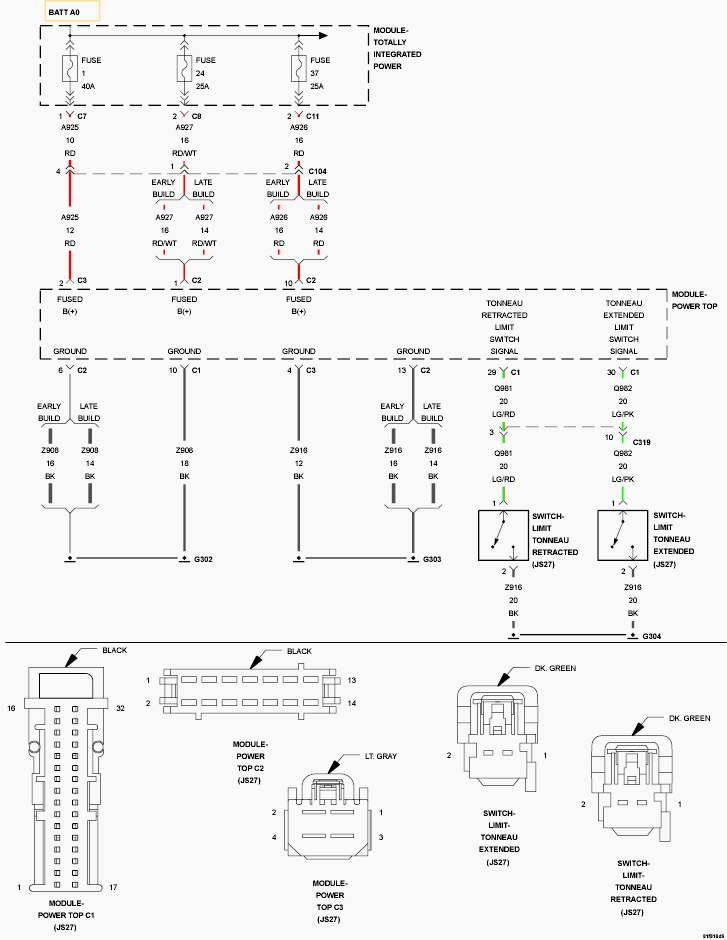

Fig 1: Tonneau Retract / Extend Limit Switch Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
