No Response From WCM (Wireless Control Module): Notes

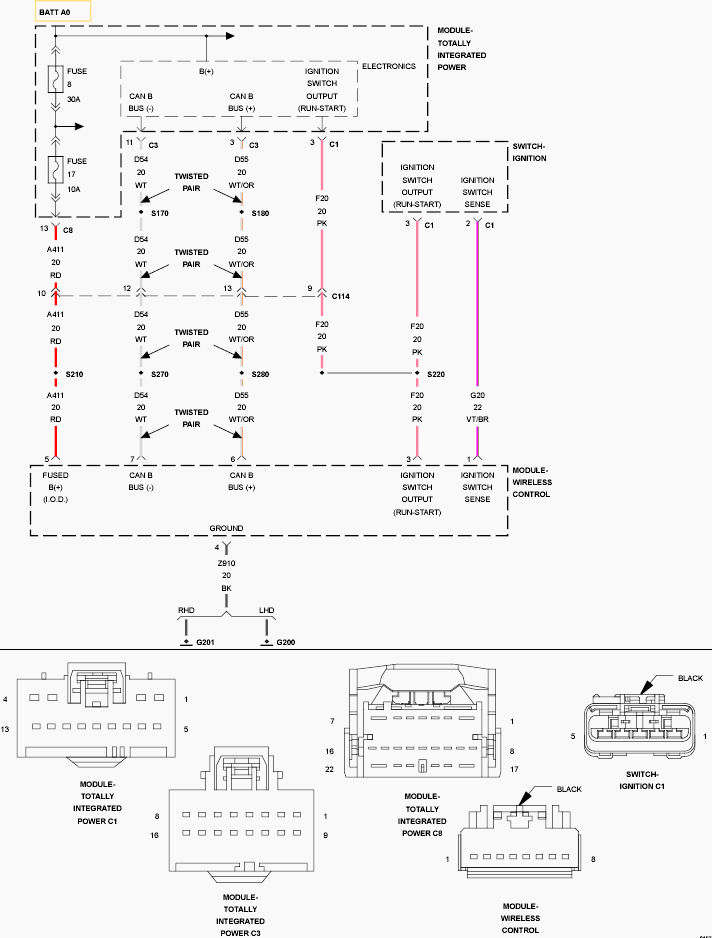

Fig 1: Wireless Control Module Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
