Third Gear POWERFLOW: Notes

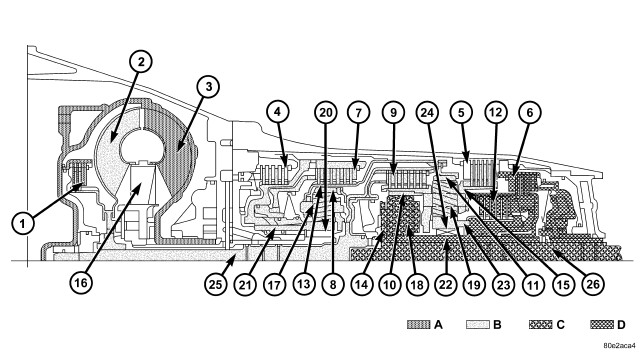

Fig 1: Third Gear Powerflow (1 Of 2)

Courtesy of CHRYSLER GROUP, LLC

1 - TORQUE CONVERTER LOCK-UP CLUTCH

14 - CENTER PLANETARY CARRIER

2 - TORQUE CONVERTER TURBINE

15 - REAR PLANETARY CARRIER

3 - TORQUE CONVERTER IMPELLER

16 - TORQUE CONVERTER STATOR

4 - HOLDING CLUTCH B1

17 - FRONT PLANETARY PINION GEARS

5 - HOLDING CLUTCH B3

18 - CENTER PLANETARY PINION GEARS

6 - HOLDING CLUTCH B2

19 - REAR PLANETARY PINION GEARS

7 - DRIVING CLUTCH K1

20 - FREEWHEELING CLUTCH F1

8 - FRONT PLANETARY ANNULUS GEAR

21 - FRONT PLANETARY SUN GEAR

9 - DRIVING CLUTCH K2

22 - CENTER PLANETARY SUN GEAR

10 - CENTER PLANETARY ANNULUS GEAR

23 - REAR PLANETARY SUN GEAR

11 - REAR PLANETARY ANNULUS GEAR

24 - FREEWHEELING CLUTCH F2

12 - DRIVING CLUTCH K3

25 - INPUT SHAFT

13 - FRONT PLANETARY CARRIER

26 - OUTPUT SHAFT

A - ENGINE SPEED

C - FIRST GEAR RATIO

B - TRANSMISSION INPUT SPEED

D - FIXED PARTS

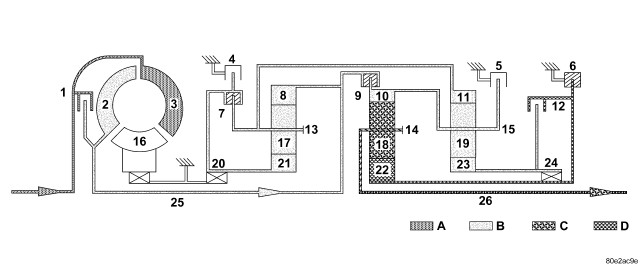

Fig 2: Third Gear Powerflow (2 Of 2)
