P0716-Input Speed Sensor 1 Circuit Performance: Notes

WARNING: This page is about a different variant/trim than selected.

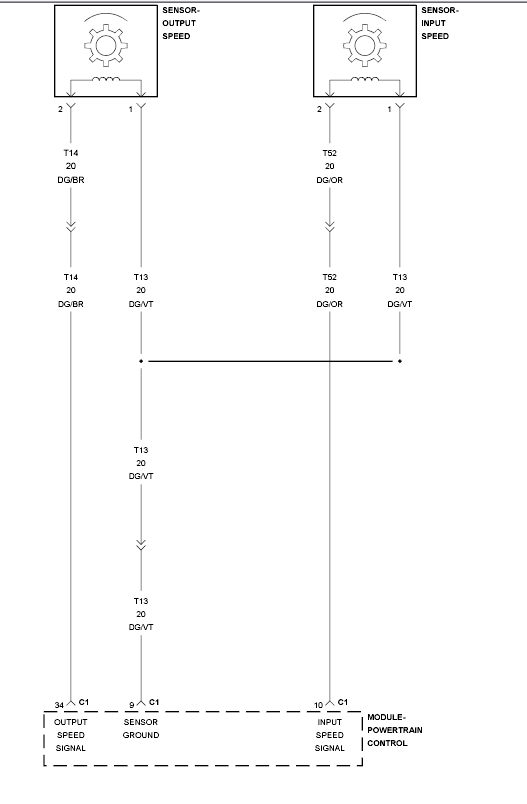

Fig 1: Input Speed Sensor & Output Speed Sensor Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
