Arm, Lower Control: Removal: Removal

NOTE:

Before proceeding. Refer to FRONT, WARNING .

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Fig 1: Tire & Wheel Mounting
Courtesy of CHRYSLER GROUP, LLC
Remove the wheel mounting nuts (3), then the tire and wheel assembly (1).

Fig 2: View Of Front Knuckle Mounting
Courtesy of CHRYSLER GROUP, LLC
Remove the nut (4) attaching the lower ball joint to the lower control arm (5).

Fig 3: Using 9360 On Lower Ball Joint
Courtesy of CHRYSLER GROUP, LLC
Release the lower ball joint (3) from the lower control arm (1) using Remover (2) (special tool #9360, Remover, Ball Joint). Do not lift the knuckle out of the lower control arm at this time.
CAUTION:
Upon removing the knuckle from the ball joint stud, do not pull outward on the knuckle. Pulling the knuckle outward at this point can separate the inner C/V joint on the half shaft thus damaging it.

Fig 4: View Of Stabilizer Link Mounting To Bar
Courtesy of CHRYSLER GROUP, LLC
At each end of the stabilizer bar, while holding the stabilizer bar link (1) lower stud stationary, remove the nut (3) securing the link to the stabilizer bar (2).
Rotate the ends of the stabilizer bar (2) upward away from the lower control arm.

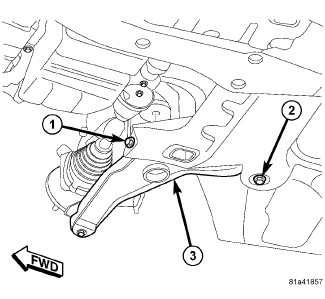

Fig 5: Identifying Lower Control Arm Mounting Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove the front bolt (1) attaching the lower control arm (3) to the front suspension crossmember.
Remove the nut on the rear bolt (2) attaching the lower control arm (3) to the front suspension crossmember. Remove the bolt.
Remove the lower control arm (3) from the crossmember.
