Steering System: Pump: Installation: SRT

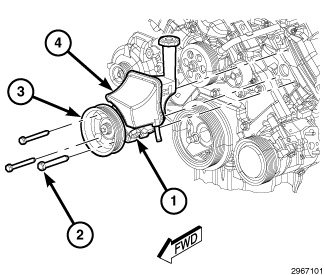

Fig 1: Power Steering Reservoir, Pump, Pulley & Bolts
GC0148443Courtesy of CHRYSLER GROUP, LLC
  1. Align pump (1) with mounting holes on engine.
  2. Install three pump mounting bolts (2) through access holes in pulley. Tighten bolts to 28 N.m (21 ft. lbs.).

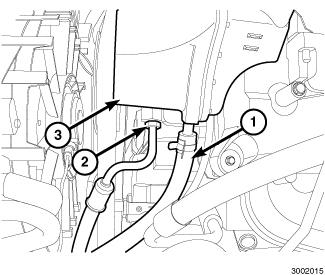

    Fig 2: Supply Hose, Pump, Remove Pressure Hose & Pump
    GC0148468Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Always use a NEW O-ring on the end of the pressure hose.

  3. Lubricate NEW O-ring on end of pressure hose with clean power steering fluid.
  4. Install pressure hose (2) to pump (3). Tighten pressure hose tube nut to 47 N.m (35 ft. lbs.).
  5. Install return hose (1) to power steering pump (3) and install clamp securing hose in place.
  6. Install serpentine drive belt. Refer to BELT, SERPENTINE, INSTALLATION .

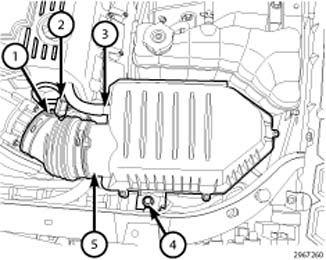

    Fig 3: Air Duct Retaining Clamp, Intake Air Temperature Sensor Electrical Connector, Makeup Air Hose, Bolt & Air Cleaner Housing
    GC0148444Courtesy of CHRYSLER GROUP, LLC
  7. While sliding the air duct onto the throttle body, lower the air cleaner housing (5) into position and align the locating pin on the bottom of the housing.
  8. Install the air cleaner housing retaining bolt (4) and tighten to 5 N.m (44 in. lbs.).
  9. Install the makeup air hose (3) at the air cleaner housing.
  10. Connect the intake air temperature sensor electrical connector (2).
  11. Position the air duct retaining clamp (1) at the throttle body and tighten to 3 N.m (30 in. lbs.).
    Fig 4: Disconnecting/Connecting Battery Cables
    GC0079763Courtesy of CHRYSLER GROUP, LLC
  12. Connect battery negative cable (2) to battery post. It is important that this is performed properly.
  13. Fill and bleed power steering system. Refer to STANDARD PROCEDURE .
